Passive GPS Antenna Splitter | 1 input, 2 output, N Connector
Product Description
This loaded DC blocked passive splitter features one input and two outputs for splitting gps RF signals from 1.1 GHz to 1.7 GHz. This splitter is designed to deliver GPS signals within the L1 frequency band to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device up to supply power to the antenna or other up device. The other ports (J2—J4) are DC blocked and loaded with a 200Ω resistor which simulates antenna draw to prevent alarm faults.

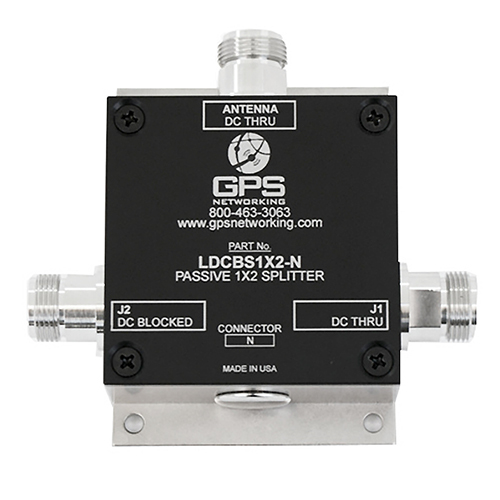

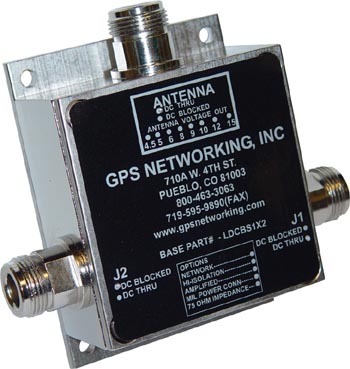

This passive GPS splitter (EDMO# LDCBS1X2) has one input and two output ports and has N connectors.
Features
- Precise amplified balance: < 1 dB variation between ports
- Flat group delay: < 1 ns variation between L1 & L2
- Low insertion loss: -4.0 dB typical
- Wide accepted frequency range: entire L-band & major GNSS constellations
- Efficiently blocked ports: 200Ω resistor prevents alarm faults
- Match phase balance: < 2° variation between ports
Specifications
Weight:
10.2 oz (289 g)
Dimensions:
1.3 x 3.25 x 2.5 in, max. (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Input SWR:
2.0:1, max.
Output SWR:
2.0:1, max.
Insertion Loss:
-3.0 dB to -5.0 dB (-4.0 dB, typical)
Gain Flatness:
0.25 dB, typical (1.0 dB, max.)
Amplitude Balance:
0.1 dB, typical (1.0 dB, max.)
Phase Balance:
1.0°, typical (2.0°, max.)
Isolation:
L1: 22 dB, min.
L2: 15 dB, min.
Group Delay Flatness:
0.1 ns, typical (1.0 ns, max.)
Connect Option:
N connector
Product Codes
- Mfr Part No:LDCBS1X2-N
- EDMO #:LDCBS1X2
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
