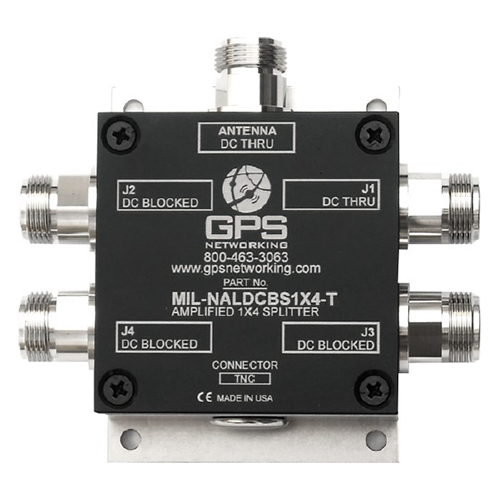

Military Amplified GPS Splitter | 1 In/4 Out/, TNC, External Power, 5VDC

GPS NETWORKING

Call For Pricing

Available to order

EDMO # MIL-NALDCB

MFR Part # MIL-NALDCBS1X4-T/5/MC

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MIL-NALDCBS1X4-T/5/MC GPS Splitter (GNSS Splitter) is a one input, four output amplified splitter based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS Frequencies) with excellent gain flatness. All Mil Spec splitters passed rigorous MIL-STD 810F testing detailed in the separate Qual Test Summary Certification.

Version (EDMO# MIL-NALDCB) is a 1 input x 4 output amplified splitter with TNC connectors, external power network option, 5VDC output, military DC connector.

Features

Hermetically sealed
EMI shielded
Amplifier gain 22dB typical
Passes all GNSS frequencies (entire L-band)
Extremely flat group delay
Less than 1ns variation
Military qualified 1X4 splitter
MIL STD 810F, MIL STD 704
Excellent gain flatness
DC blocked outputs feature 200Ω loads
Prevents antenna alarm faults

Specifications

Weight:

12 oz
Dimensions:

2.5 x 2.5 x 1.3 in. overall
Temperature:

-40ºC to 75ºC
DC option:

All DC Blocked Outputs include 200Ω Load Standard Any port can be custom selected to Pass or Block DC
Connector:

TNC
