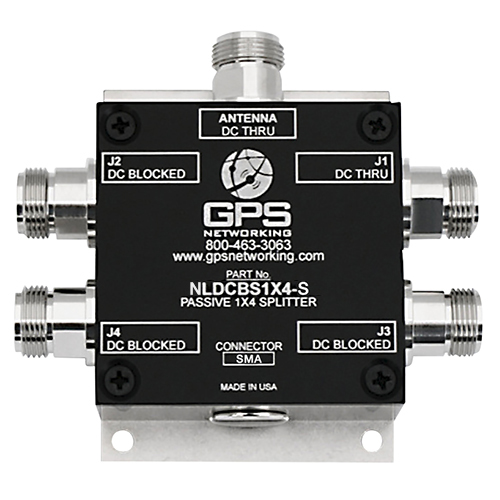

Networked GPS Antenna Splitter | 4 Outputs, 1 Input, SMA Connector

GPS NETWORKING

Call For Pricing

Available to order

EDMO # NLDCBS1X4S

MFR Part # NLDCBS1X4-S/5/MC

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The NLDCBS1X4 passive, networked GPS splitter has one input and four outputs and is based on the Wilkinson splitter design. The frequency response covers the entire GPS L-band (GNSS) frequencies with excellent gain flatness. In the standard configuration, without external power, RF output (J1) passes DC from the connected GPS receiver, through the splitter, and onto the antenna, while the other RF outputs (J2 - J4) remain DC blocked. When optional external power is applied, the DC output voltage on all RF outputs become user selectable. The DC blocked outputs incorporate a 200 resistor to simulate antenna current draw and prevent false antenna fault detections.

This passive, networked GPS splitter (EDMO# NLDCBS1X4S) includes one input and four outputs, each with SMA connectors. This GPS splitter operates on 9 - 32 VDC military DC connector and provides DC output of 5 volts.

Features

Excellent gain flatness for all GNSS frequencies
Extremely flat group delay with a variation less than 1 ns
Low insertion loss
Passes entire L-band (GNSS) frequencies
Phase matched outputs (less than 1.0)
Prevents antenna alarm faults from connected devices with 200 DC blocked outputs

Specifications

Weight:

11.8 oz (340 g)
Dimensions:

1.3 x 3.25 x 2.5 in (including base plate)
Operating Temperature:

-40°C to 75°C
Finish Housing and Base Plate:

Electroless Nickel Plated MIL-C-26074C Class 1, .0001-.0003 Max
Finish Lid:

Anodize, Type II, Class 2, Black, per MIL-A-8625
Frequency Range:

1.1 - 1.7 GHz
Impedance:

50Ω
Input SWR:

2.0:1
Output SWR

: 1.5:1
Insertion Loss:

—7.5 to -9.5 dB, -8.5 dB typical
Gain Flatness:

1.0 dB
Amplitude Balance:

1.0 dB
Phase Balance:

1°
Isolation:

Adjacent ports: 15 dB Opposite ports: 22 dB
Group Delay Flatness:

1 ns
