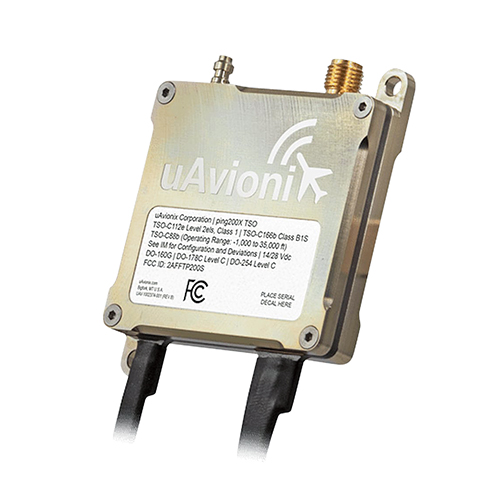

ping200X TSO Certified Mode S ADS-B Transponder for UAS | Built-in GPS

Product Description

The ping200X is a TSO certified, Mode S ADS-B transponder for UAS. It enables airspace access, regulator and Air Navigation Service Provider (ANSP) acceptance worldwide while enabling your aircraft to be detected by Secondary Surveillance Radar (SSR), Traffic Collision Avoidance Systems (TCAS), and ADS-B IN receivers. Compact and lightweight, the ping200X is a Level 2els, Class 1 transponder that is small enough to fit on Class 1 and 2 sUAS and outperforms bulkier transponders while drawing only 1.5 watts.

The ping200X can be integrated with an autopilot for dynamic control from the ground control station (GCS) or carried as a payload with the uAvionix mini-controller for easy set and forget functionality. The serial control protocol is based on industry standards offering broad autopilot support.

Specifications

• Weight:
  50 grams Dimensions: 47 x 54 x 9 mm Input Voltage: 11 V — 34 V (3S — 8S LiPo) 1.5 watt (continuous on/alt) 4 watt, peak (8 ms maximum) SDA/SIL: 2/3 Operating Temperature: -45°C to 70°C Transponder MTL 1030 MHz: -74 dBm ±3 dB Altimeter Range: -1000 ft — 35,000 ft Interfaces Baudrate: 1200 Mbps — 2 Mbps Protocol: GDL90+ Position Baudrate: 115200 bps Protocol: uAvionix OEM Protocol Options: 1030/1090MHz Transponder Antenna

Product Codes

• Mfr Part No
  UAX-90067-01
• SCHEDULE B CODE
  9014.20.8040
