skySensor | ADS-B In, TSO Aircraft

UAVIONIX

Call For Pricing

In stock

EDMO # UAX9009801

MFR Part # UAX-90098-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

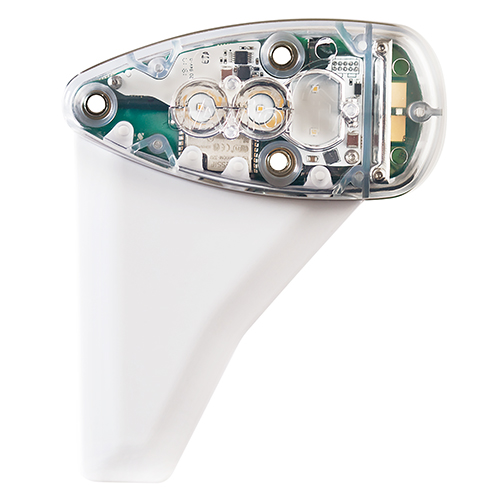

The skySensor is a ADS-B dual band receiver built into a wingtip, starboard position, anti-collision light. This subscription-free device provides in-flight weather information on both 978 MHz and 1,090 MHz and delivers in real-time aircraft position and weather overlays to EFB supported applications using the GDL90 protocol, such as ForeFlight Mobile, FLTPlan Go, FlyQ, WingX, and many other applications.

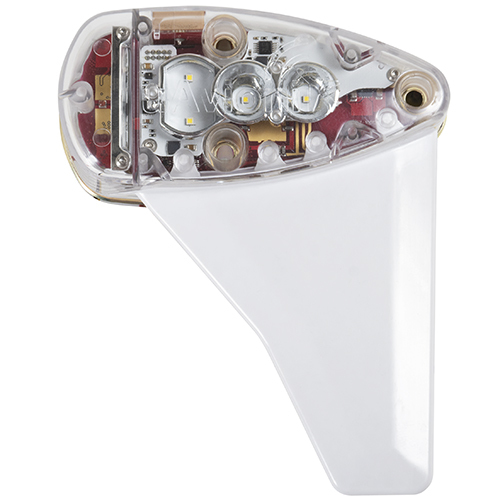

The skySensor is designed to complete your skyBeacon installation by providing an ADS-B receiver matching the right wingtip ADS-B out device. Together, these units provide a complete ADS-B compliant solution including a dual band, ADB-S receiver, a static pressure sensor, and GPS receiver. Traffic, weather, and position data is transmitted over Wi-Fi to GDL90 compatible EFB's using the AV-LINK (experimental) Wi-Fi module.

Features

Dual-link ADS-B receiver operates on legacy 1,090 MHz ADS-B traffic and UAT & uplink data
Meets MOPs of DO-260B & DO-282B
Position light meets performance requirements of TSO-C30c Type I
Temperature controlled static pressure sensor offers integrated precision accurate up to 80,000 ft
Integrated RAIM processor for Security and Integrity protection
SBAS corrections and health messages used to detect and correct satellite errors
Satellite pseudo range step errors detected and excluded
SBAS fast and long-term corrections applied
Integrated Wi-Fi to transmit in-flight weather, NEXRAD radar, METARS, TAFs, TFRs, AIRMETs, SIGMETs and NOTAMS to EFB applications

Also Purchased

Specifications

Weight:

90 g Dimensions: 124 x 116 x 48 mm Input Power: 11 VDC — 31 VDC SIL/SDA: 2/3 Operating Temperature: -45°C to 80°C ADS-B Receivers 1090 Sensitivity: -93 dBm 978 Sensitivity: -104 dBm GPS Tracking: -166 dBm Reacquisition: -160 dBm Cold Star: -148dBm LED Position Light Color: Aviation Green Intensity: 40 candelas Wi-Fi Physical: 802.11b/g/n App Compatibility: iOS, Android
