tailBeacon | ADS-B Out, WAAS GPS, Encoder, Rear Position LED Nav Light

UAVIONIX

Call For Pricing

In stock

EDMO # UAX9003601

MFR Part # UAX-90036-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

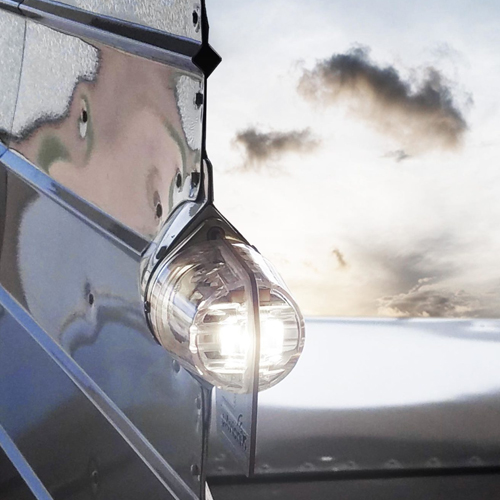

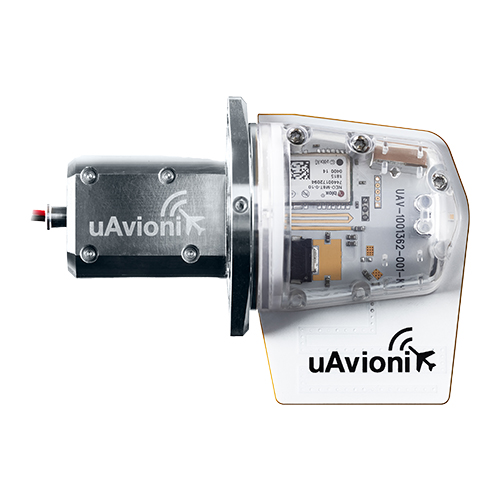

The tailBeacon from uAvionix is a TSO certified, revolutionary new way to equip ADS-B out for certified aircraft. This rear position nav light is integrated with ADS-B Out, GPS, and LED position lighting. The tailBeacon will work with any Mode C transponder which meets the 2020 ADS-B requirements. The easy installation is as simple as replacing the aft aircraft position light. There are no airframe modifications or additional antennas required. The installation only requires two screws and reuses the existing power and ground to your current position light as well as the existing breaker. Due to the unique design and technology of the tailBeacon, there is no need to run any new wiring to the transponder. Light Sport aircraft are also eligible for installation but require a Letter of Authorization from the manufacturer.

Goof-Proof Configuration, mechanically installing an ADS-B solution is only half the battle. The skyBeacon mobile application can also be used to configure tailBeacon. The intuitive, easy to use app guides you through setting the necessary values including the ICAO address, emitter type, aircraft length, width and GPS offsets. Since tailBeacon is self-contained there are no serial ports settings or protocols to configure.

Features

Eligible for install on any suitable experimental aircraft that routinely flies below FL180
TSO certified
Easy installation
No airframe modifications or additional antennas are required
Works with any Mode C transponder
Transponder data is provided via the existing aircraft wiring system using the Power Transcoder
tailBeacon uses the existing mounting location, breaker, and wiring

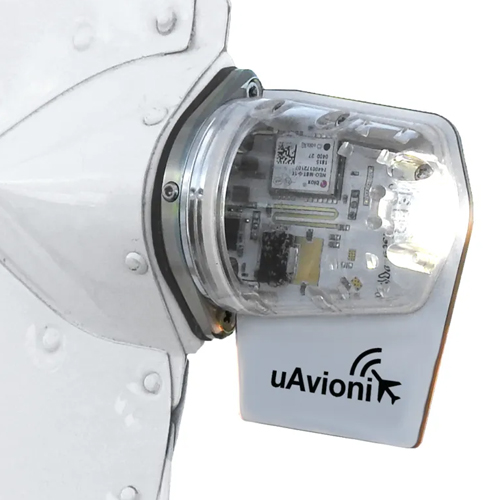

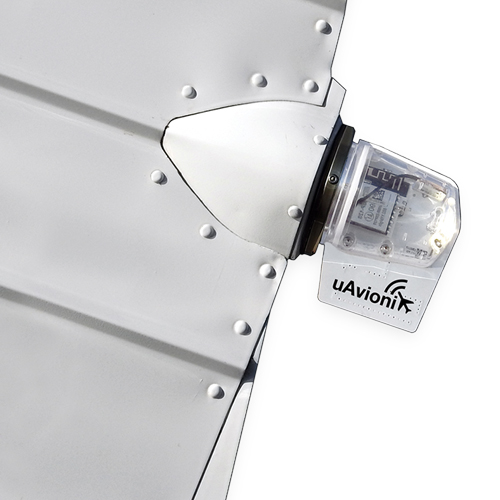

Installation is as simple as replacing the aft aircraft position light
Integrates LED nav light
WAAS GPS
2020 ADS-B compliance
Lowest total cost of ownership of any ADS-B Out solution
The tailBeacon consists of the following TSOs & Regulatory Certifications:
UAT Transmitter: TSO-154c (RTCA/DO-282B) Class B1S
Position Lighting: TSO-C30c Type III & SAE/AS8037
WAAS GPS: TSO-C145e (RTCA/DO-229E) Class Beta 1
FCC ID 2AFFTUAT016R
ADS-B Out: §91.225, §91.227, AC 20-165B
GNSS Position: AC 20-165B

Also Purchased

Specifications

Weight:

70 g
Dimensions

: 92 x 43 x 73 mm
Input Voltage

: 11-31 VDC
Operating Power

: 3 W
Power Transcode

r: Decodes Mode A & C via DC input
978MHz UAT Transmitter

Power Classification : DO-282B Medium Power
WAAS GPS

Tracking : -166 dBm
Reacquisition

: -160 dBM
Cold Start

: -148 dBm
LED Position Light

Color : Aviation White
Intensity

: 40 candelas
WiFi Configuration

Physical : 802.11 b/g/n
App Compatibility

: iOS, Android
Regulatory/TSO:

FCC ID 2AFFTUAT016R ADS-B Out: §91.225, §91.227, AC 20-165B GNSS Position: AC 20-165B UAT Transmitter: TSO-154c (RTCA/DO-282B) Class B1S Position Lighting: TSO-C30c Type III & SAE/AS8037 WAAS GPS: TSO-C145e (RTCA/DO-229E) Class Beta 1
