Product Description

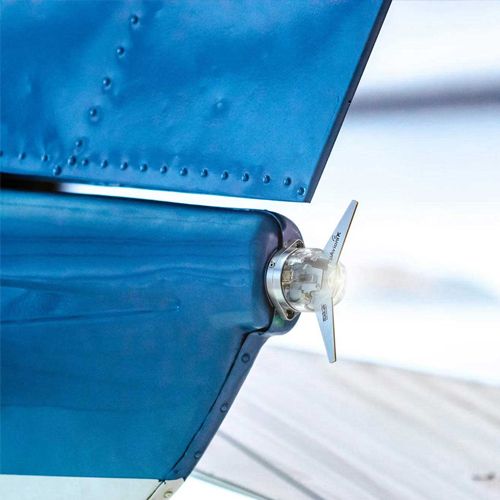

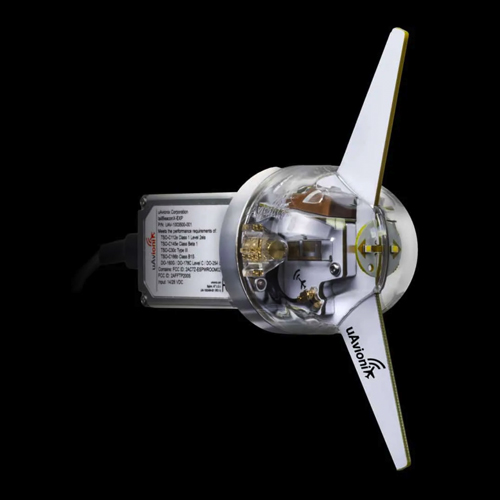

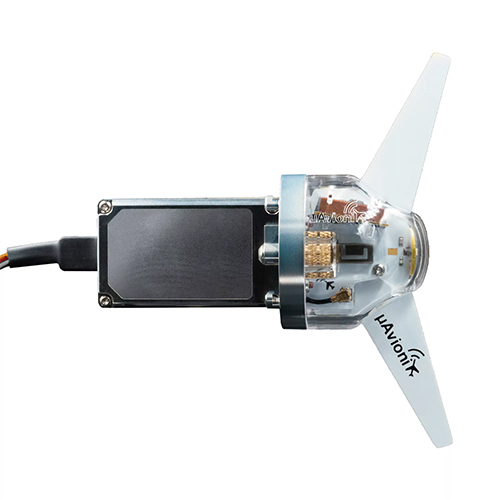

tailBeaconX is the next era of global ADS-B. Compatible with surface and space-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and aviation GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.
tailBeaconX embraces the future, providing precision ADS-B data to the Aireon satellite network without the need for diversity antennas. When it comes to terra firma, tailBeaconX also exceeds the performance of traditional panel installed transponders that use belly mount antennas.
The tailBeaconX TSO is compatible with the AV-30C and many existing EFIS.
Version (EDMO# UAX9005903) is designed for use with TSO certified aircraft.
Features
- Mode S ADS-B OUT transponder
- 1090MHz
- Integrated certified GPS receiver
- Aireon compatible
- LED lighting
- Rear position light
- Space-based and ground-based antennas
- Minimal installation
Specifications
Weight:
140 grams
Size:
113x105x48mm
Input Voltage:
11-31V DC
Operating Power:
3 Watts
SDA/SIL:
2/3
Operating Temp:
-45°C to 70°C
1090ES ADS-B Transmitter:
Power Classification 250 Watts Nominal
WAAS GPS:
Tracking - 166dBm
Reacquisition -1 60dBm
Cold Start - 148dBm
LED Position Light:
Color - Aviation White
Intensity - 20 candelas
Control Head:
Physical - RS232 or Power Line Modem
Protocol - UCP
Regulatory:
FCC ID: 2AFFTP200S
Product Codes
- Mfr Part No:UAX-90059-03
- EDMO #:UAX9005903
- Brand:UAVIONIX
- Category:Transponders, Altitude Encoders & Serializers
