tailBeaconX TSO & AV-30C Bundle | ADS-B, MFD, Certified Aircraft
Product Description
tailBeaconX is the next era of global ADS-B. Compatible with surface and space-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and aviation GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.
The AV-30 is a highly capable, fully digital, multi-mode instrument that mounts in the legacy 3⅛ inch round instrument panel cutout. It can be field configured as either an Attitude Indicator (AI) or a Direction Indicator (DG), contains an internal battery, and allows for a wide variety of pilot customization.

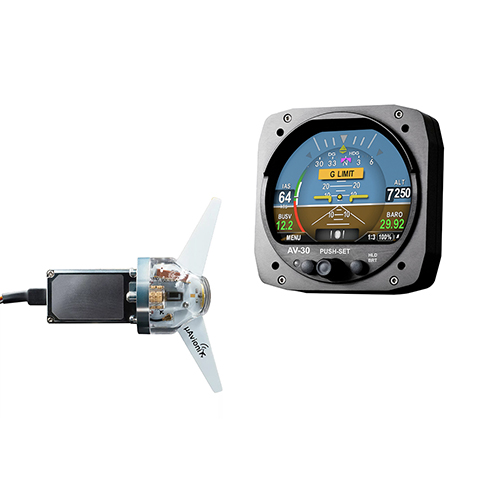

Version (EDMO# UAX9005905) includes the tailBeaconX TSO (UAX9005903) and the AV-30C Certified Multi-function Panel Display.
Features
tailBeaconX features:
- Mode S ADS-B OUT transponder
- 1090MHz
- Integrated certified GPS receiver
- Aireon compatible
- LED lighting
- Rear position light
- Space-based and ground-based antennas
- Minimal installation
AV-30C features:
- Primary Attitude
- Primary Slip
- Primary Direction Indication
- Probeless Angle Of Attack
- Indicated Airspeed (KTS/MPH)
- Altitude / Vertical Trend / Alerter
- +8 / -8 G-Meter
- OAT / TAS / Density Altitude
- Bus Voltage
- GPS Navigational Data Overlay
- GPS HSI / 360 Rose / Arc Map Mode
- Customizable Colors, Fonts, & Layout
- Audio Alerts (AoA, G, Roll Limits)
- 2 Hr Typical Internal Battery Operation
Specifications
tailBeaconX specifications:
Weight:
140 grams
Size:
113x105x48mm
Input Voltage:
11-31V DC
Operating Power:
3 Watts
SDA/SIL:
2/3
Operating Temp:
-45°C to 70°C
1090ES ADS-B Transmitter:
Power Classification 250 Watts Nominal
WAAS GPS:
Tracking - 166dBm
Reacquisition -1 60dBm
Cold Start - 148dBm
LED Position Light:
Color - Aviation White
Intensity - 20 candelas
Control Head:
Physical - RS232 or Power Line Modem
Protocol - UCP
Regulatory:
FCC ID: 2AFFTP200S
AV-30C specifications:
Weight:
0.50 lb
Dimensions:
3.38 x 3.38 x 1.6 in.
Input Voltage Nominal:
+10 to +32 VDC
Input Voltage Max:
+60 VDC
Input Power Nominal:
6 Watts (0.5 Amps @ 12VDC)
Input Power Max:
12 Watts (1.0 Amps @ 12VDC)
Required Circuit Breaker:
2 Amp
Operation on Battery:
2 Hours Typ. @ 20°C / 30 Minutes Min @ -20C
Mounting Configuration:
3 1/8” Round Instrument Hole
Electrical Connector:
15 Pin Male D-Sub
Pneumatic Connectors:
1/4 in. OD Quick Connect
Mounting:
(4X) #6-32 Machine Screws
Case Material:
Billet Aluminum
Operating Temp:
-20°C to +55°C
Diagonal Size:
3 in (circular)
Contrast Ratio:
(Typical) 500
Brightness:
(Typical) 1000 cd/m2
Viewing Angle Left/Right:
60°
Viewing Angle Up:
45°
Viewing Angle Down:
10°
Backlight Lifetime:
(Typical) 50,000 hr
Product Codes
- Mfr Part No:UAX-90059-03 and AV-30C
- EDMO #:UAX9005905
- Brand:UAVIONIX
- Category:Transponders, Altitude Encoders & Serializers
- ECCN:7A994
- PMA:AV-30C PQ05445NM
- SCHEDULE B CODE:8526.91.0010
- TSO:UAX9005903 - C112a, C166b, C145e, C30c
