IC-A25C VHF Airband Handheld | Comm Only

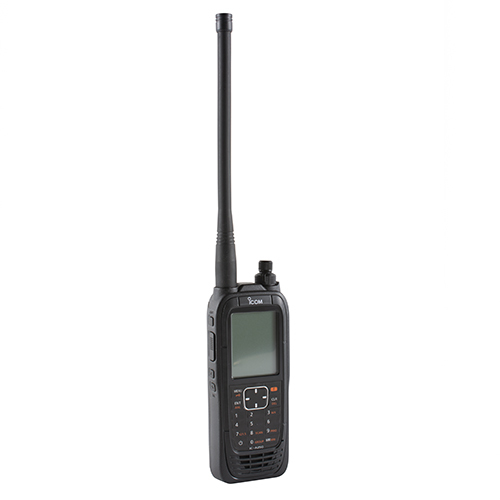

IC-A25 VHF Air Band Handheld Communication Transceiver

Select Navigation Option

ICOM AMERICA

Call For Pricing

In stock

EDMO # IC-A25C

MFR Part # A25C 86 USA

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The IC-A25 Series Airband Handheld Transceivers feature a six-watt, high power transmitter that expands communication coverage for enhanced safety. An IP57 waterproof rating allows these radios to continue to operate even in severe weather. A large 2350 mAh Li-ion battery provides operation up to 10.5 hours.

The easy-to-use interface combined with a large 2.3-inch LCD display offers stress-free programming and in-flight operation. Day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark. Frequently used functions are directly assigned to the 10-keypad allowing quick access to common functions while the enlarged, flat sheet keypad offers smooth and swift operation.

This version (EDMO# IC-A25C) is a communications only handheld transceiver and includes an antenna, lithium-ion battery pack, belt clip, headset adapter, rapid charger, hand strap, and owners manual.

Features

Includes:
Li-ion Battery pack BP-288
BC-244 and BC-123SA Rapid charger
Headset adapter, OPC-2379
Antenna, FA-B02AR
Belt clip, MB-133
Hand strap
Owners manual
Features:
Large 2.3-inch LCD display
Day mode allows pilots to read the display in direct sunlight
Night mode makes reading at night easy
“Flip-Flop” channel recall stores the last 10 channels used
Quick recall simply by using the directional keys or the channel knob
Intelligent battery pack allows on-screen battery status
10.5 hours of operating time with its 2350 mAh capacity battery
IP57 dust-protection and waterproof construction
Optional 6xAA alkaline batteries with the BP-289 battery case (sold separately)
BNC antenna
121.5 MHz emergency key
Weather channels
Priority watch
VFO scan, memory-channel scan, and priority scan
ANL (Auto Noise Limiter) for noise reduction
Side tone function
Internal VOX capability
300 memory channels (in 15 memory groups) with 12 character names
8.33 kHz channel spacing

Also Purchased

Specifications

Weight:

12.0 oz (340 g), with BP-288
Dimensions (not including projections):

2.3 x 5.8 x 1.3 in (58.9 x 148.4 x 31.8 mm)
Frequency Range (COM channels):

Tx: 118.000 MHz – 136.975 MHz Rx: 118.000 MHz – 136.975 MHz Rx (Weather): 161.650 MHz – 163.275 MHz
Memory Channels:

300 channels, 15 groups
Channel Spacing:

25 kHz / 8.33 kHz
Type of Emission:

6K00A3E, 5K60A3E, 16K0G3E (Weather)
Power Supply Requirement:

7.2 VDC (BP-288), 11.0 VDC (external DC jack)
Current Drain (approximately):

Tx high: <1.8A Rx max. audio/stand-by: <500mA /90mA, typical
Antenna Impedance:

50Ω
Operating Temperature:

–10°C to 60°C (14°F to 140°F)
TRANSMITTER

Output Power: 6.0/1.8 W, typical (PEP/carrier), at 7.2V DC
Audio Harmonic Distortion:

<10%, at 60% modulation
Hum and Noise Ratio:

>35 dB
Spurious Emissions:

>46 dB (Exclude fc±62.5 kHz for AM mode) (Exclude fc±20.825 kHz for AM-N mode)
Frequency Stability:

±0.4 kHz
RECEIVER

Intermediate Frequencies (1st/2nd): 46.35 MHz/450 kHz
Sensitivity:

NAV/COM: <0 dBµ (NAV/COM, 6 dB S/N) WX: <-8 dBµ (12 dB SINAD
Squelch Sensitivity:

<0 dBμ (AM), <–5 dBμ (FM), at threshold
Spurious Response:

>60 dB (AM), >30 dB (FM)
Hum and Noise:

>35 dB (at 30% modulation)
Audio Output Power:

>350 mW typical (8Ω load/60% Mod. at 10% distortion)
External Speaker Connector:

3-conductor 3.5 mm (1/8 in)/8Ω
Dust and Water:

IP57 (dust-protection and waterproof* protection) * One meter depth for 30 minutes
