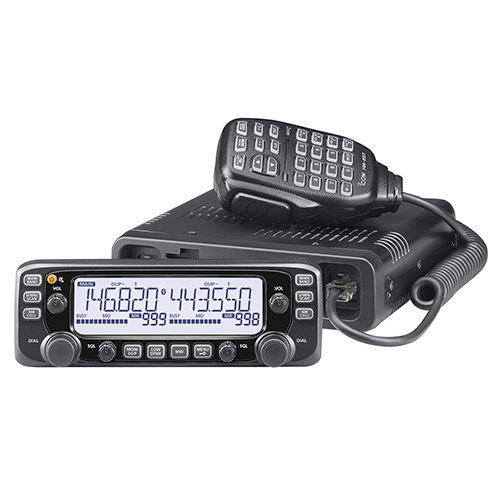

IC-2730A VHF/UHF Dual Band Transceiver

ICOM AMERICA

Call For Pricing

Available to order

EDMO # IC-2730A

MFR Part # 2730A 35

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The IC-2730A is as easy-to-use VHF/UHF dual band mobile transceiver which can simultaneously receiver as 50 watts RF output on both VHF and UHF. This radio features quick and precise control over the radio by placing seperate tuning, volume, and squelch knobs on each side of the radio.

Features

50, 15, and 5 watts output power
118 MHz — 174 MHz & 375 MHz — 550 MHz frequency range
1,052 memory channels (including 50 scan edges & 2 call)
VHF/VHF & UHF/UHF simultaneous receive capability as well as VHF/UHF receive
Larger & brighter LCD display shows frequencies and channel names with higher contrast
UT-133A module provides optional Bluetooth connectivity
Combination of optional MBF-1 suction cup mounting and MBA-5 controller bracket allows for easy tilt and swivel adjustment
Built-in 50 CTCSS and 104 DTCS tones with split tone function
CS-2730 free download PC programming software
Versatile scanning capability
Squelch delay & squelch attenuator
Sub band auto mute function
Sub band busy beep function
Auto power off
Time-out-timer
16 DTMF auto dial memories
Weather channel receive with weather alert
CI-V remote control capability (through the OPC-478UC)

Specifications

Weight:

2.65 lb (1.2 kg), main unit 4.94 oz (140 g), controller
Dimensions:

5.91 x 1.57 x 5.94 in (150 x 40 x 151 mm), main unit 5.91 x 1.97 x 1.07 in (150 x 50 x 27.5 mm), controller
Frequency Coverage:

TX: 144 MHz — 148 MHz RX: 118 MHz — 375-550 MHz* *Guaranteed range, 144–148, 430–450MHz
Mode:

F2D, F3E
Type of Emission:

F2D, F3E (FM)
No. of Frequency Channels:

1,052 channels (including 50 scan edges and 2 call)
Frequency Stability:

±2.5 ppm ±3 ppm (-10°C to 60°C)
Temperature:

14°F to 140°F (-10°C to 60°C), operating
Power Supply Requirements:

13.8 VDC ±15%
Current Drain (@ 7.4 VDC):

Transmit: 13A Receiver: 1.8A/1.2A (max. audio/stand-by)
Antenna Impedance:

50Ω (S)-239)
Supplied Accessories:

Hand microphone (HM-207) Controller cable DC power cable Microphone hanger and spare fuses MBA-5 (deluxe version only)
Transmitter:

50W, 15W, 5W [Output Power (@ 13.8 VDC)] 25W, 15W, 5W (TPE version)
Maximum Frequency Deviation:

±5.0 KHz/±2.5 KHz (W/N)
Spurious Emissions:

Less than -60 dBc
Microphone Impedance:

60Ω (8-pin)
Receiver:
Intermediate Frequency:

38.85 MHz / 450 KHz, (A Band) 46.35 MHz / 450 KHz, (B Band)
Sensitivity (@ 12 dB SINAD):

< -15 dBµ
Selectivity:

> 60 dB/55 dB W/N)
Spurious Response Rejection:

> 60 dB/55 dB (A Band) > 60 dB/60 dB (B Band)
Audio Output Power:

> 2W (10% dist. 8Ω)
External Speaker Connector:

2-connector, 3.5 mm, 4Ω
Receiver Sensitivity:

(FM/FM-N (12 dB SINAD) 137 MHz — 159.999 MHz, -10 dBµ 375 MHZ — 399.999 MHz, -5 dBµ 500 MHz — 550.000 MHz, -5 dBµ 160 MHz — 174.000 MHz, -5 dBµ 400 MHz – 499.000 MHz, 10 dBµ (AM/AM-N 10 dB S/N) 118 MHz — 499.000 MHz, 0 dBµ
