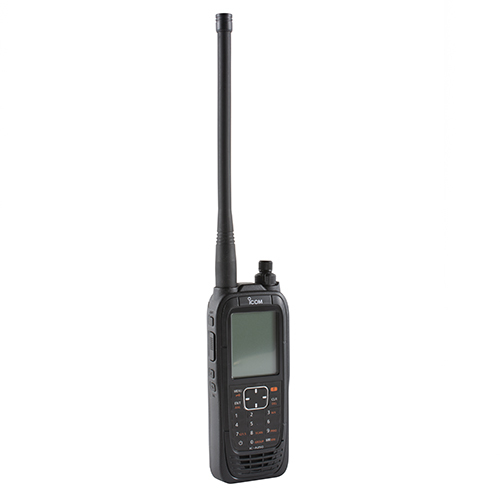

IC-A25C VHF Airband Handheld | Comm Only, Sport
Product Description
The IC-A25 Series Airband Handheld Transceivers feature a six-watt, high power transmitter that expands communication coverage for enhanced safety. An IP57 waterproof rating allows these radios to continue to operate even in severe weather.
The easy-to-use interface combined with a large 2.3-inch LCD display offers stress-free programming and in-flight operation. Day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark. Frequently used functions are directly assigned to the 10-keypad allowing quick access to common functions while the enlarged, flat sheet keypad offers smooth and swift operation.
This version (EDMO# IC-A25C-S) is a communications only handheld and 2xAA battery, antenna, belt clip, hand strap, and owners manual.
Features
Includes:
- 2xAA alkaline battery case, BP-28p
- Antenna, FA-B02AR
- Belt clip, MB-133
- Hand strap
- Owners manual
Features:
- Large 2.3-inch LCD display
- Day mode allows pilots to read the display in direct sunlight
- Night mode makes reading at night easy
- “Flip-Flop” channel recall stores the last 10 channels used
- Quick recall simply by using the directional keys or the channel knob
- Intelligent battery pack allows on-screen battery status
- IP57 dust-protection and waterproof construction
- BNC antenna
- 121.5 MHz emergency key
- Weather channels
- Priority watch
- VFO scan, memory-channel scan, and priority scan
- ANL (Auto Noise Limiter) for noise reduction
- Side tone function
- Internal VOX capability
- 300 memory channels (in 15 memory groups) with 12 character names
- 8.33 kHz channel spacing
Specifications
Weight:
12.0 oz (340 g), with BP-288
Dimensions (not including projections):
2.3 x 5.8 x 1.3 in (58.9 x148.4 x 31.8 mm)
Frequency Range (COM channels):
Tx: 118.000 MHz to 136.975 MHz
Rx: 118.000 MHz to 136.975 MHz
Rx (Weather): 161.650 MHz to 163.275 MHz
Memory Channels:
300 channels, 15 groups
Channel Spacing:
25/8.33 kHz
Type of Emission:
6K00A3E, 5K60A3E, 16K0G3E (Weather)
Power Supply Requirement:
7.2 VDC (BP-288), 11.0 VDC (external DC jack)
Current Drain (approximately):
Tx high: <1.8A
Rx max. audio/stand-by: <500mA /90mA typical
Antenna Impedance:
50Ω
Operating Temperature:
–10°C to 60°C (14°F to 140°F)
TRANSMITTER
Output Power:
6.0/1.8 W typical (PEP/carrier), at 7.2 VDC
Audio Harmonic Distortion:
<10%, at 60% modulation
Hum and Noise Ratio:
>35 dB
Spurious Emissions:
>46 dB
(Exclude fc±62.5 kHz for AM mode)
(Exclude fc±20.825 kHz for AM-N mode)
Frequency Stability:
±0.4 kHz
RECEIVER
Intermediate Frequencies (1st/2nd):
46.35 MHz/450 kHz
Sensitivity:
NAV/COM: <0 dBµ (NAV/COM, 6 dB S/N)
WX: <-8 dBµ (12 dB SINAD)
Squelch Sensitivity:
<0 dBμ (AM), <–5 dBμ (FM), at threshold
Spurious Response:
>60 dB (AM), >30 dB (FM)
Hum and Noise:
>35 dB (at 30% modulation)
Audio Output Power:
>350 mW typical (8Ω load/60% Mod. at 10% distortion)
External Speaker Connector:
3-conductor 3.5 mm (1/8 in)/8Ω
Dust and Water:
IP57 (dust-protection and waterproof* protection)
* One meter depth for 30 minutes
Product Codes
- Mfr Part No:A25C SPORT
- EDMO #:IC-A25C-S
- Brand:ICOM AMERICA
- Category:Handheld Radios
