Product Description

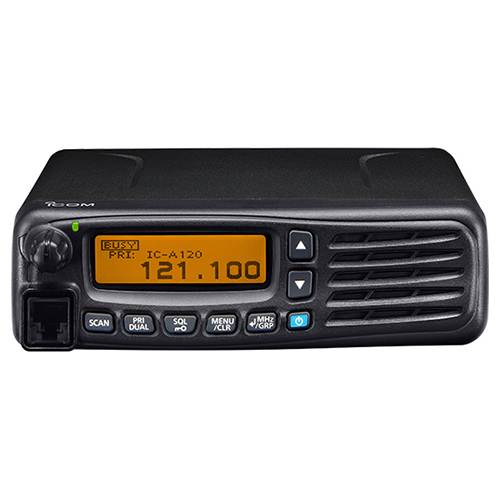

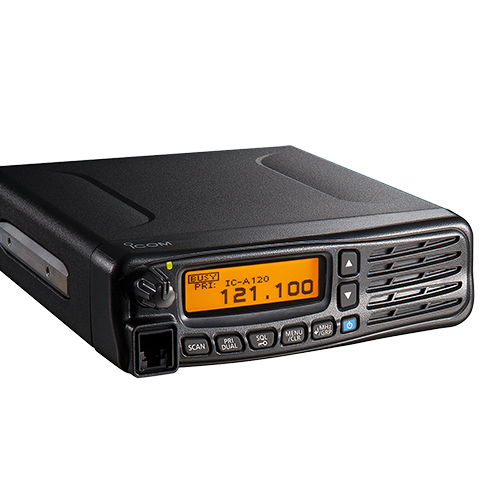

Icom’s IC-A120 VHF Airband Mobile Transceiver introduces two features: Active Noise Cancelling (ANC) and Bluetooth® capabilities. The built-in ANC reduces background noise and is effective in extremely noisy airport environments. The automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition.

The IC-A120 also features an ON-Hook scan function that automatically starts scanning when the hand microphone is hooked on the microphone hanger. When a user takes the microphone OFF hook, the scanning stops at the priority channel or displayed channel. A Dualwatch function checks the priority and operating channels alternatively. Meets IP54 standards for dust protection and water-resistance.

This version (EDMO# IC-A120) includes a vehicle mount and hand microphone.

Features

Includes:
Vehicle mount

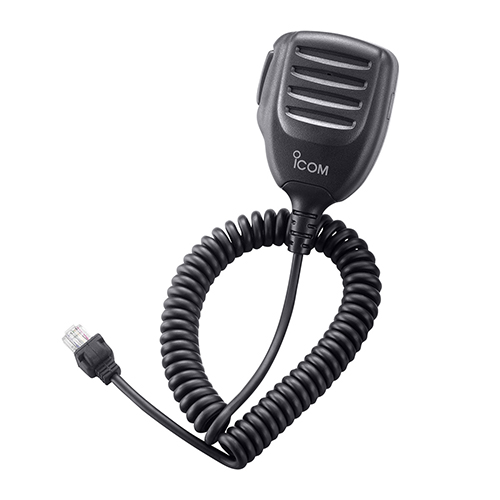

Hand microphone (HM-216)
DC power cable
Microphone hanger kit
Mounting bracket kit
Fuses
Features:
Dot-matrix LCD display is easy to read with crisp, clear text
Memory channels and other radio settings can be programmed from the front panel
Provides 200 memory channels with 12-character channel names and 8.33 kHz and 25 kHz channel spacing
Built-in Active Noise Canceling (ANC) reduces background noise in the received and transmitted signals
Automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition (ANL and ANC functions cannot be used at the same time)
IP54 dust-protection and water-resistant construction allows the IC-A120 to be used in open-air vehicles
ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger
Dualwatch feature checks the priority and operating channels alternatively while ON-Hook
Provides optional Bluetooth® headset connectivity when the UT-133 Bluetooth unit is added — allowing for third-party wireless Bluetooth headsets to be used
Third-party headsets can be used with the optional OPC-871A headset adapter
Optional HM-217 speaker-microphone allows the user to listen to received audio through the HM-217’s built-in speaker
The speaker-microphone features up/down buttons as well as two programmable P1/P2 buttons that serve as a shortcut for activating frequently used functions
Compatible with 12- and 24- volt systems
36W (PEP) RF output power
Power-on password protection
PC programming capability
CI-V Commands for external control
VE-PG3 RoIP gateway for interconnecting with other radio devices

Also Purchased

Specifications

Weight:

1.5 kg (3.3 lb)
Dimensions:

161 x 45 x 193 mm (6.34 x 1.77 x 7.6 in)
Frequency Range:

118.000 to 136.992 MHz
Channel Spacing:

25 kHz/8.33 kHz
Type of Emission:

A3E (AM)
Number of Memory Channels:

200 channels
Antenna Connector:

M type (50Ω)
Power Supply Requirement:

13.75 V/27.5 VDC
Current Drain (at 13.75 VDC):

Transmitting: 5.0 A max. Receiving: 4.0 A (at AF max.), 0.5 A at standby
Operating Temperature Range:

-30°C to 60°C
Frequency Stability:

±5 ppm (-30°C to 60°C)
TRANSMITTER

Output Power (at 13.75V): 9.0 watts typical (carrier power)
Modulation:

70% to 100%
Spurious Emission:

less than 60 dB (harmonics/non-harmonics, 30MHz to 1 GHz)
Microphone Impedance:

600Ω
RECEIVER

Intermediate Frequency: 38.85 MHz/450 kHz (1st/2nd)
Sensitivity (pd):

1 µV (6 dB S/N)
Selectivity:

8.33 kHz: 2.778/7.37 kHz (6 dB/ 60 dB) 25 kHz: 8/25 kHz (6 dB/60 dB)
Spurious Response:

more than 74 dBµ
Audio Output Power:

10% distortion, 60% modulation
Internal Speaker:

1.5 watt (8Ω load)
External Speaker:

more than 10 watt (8Ω load)
Headphones:

more than 100 mW (500Ω load)
Applicable IP Rating:

dust and water: IP54 (dust-protection and water resistance)
