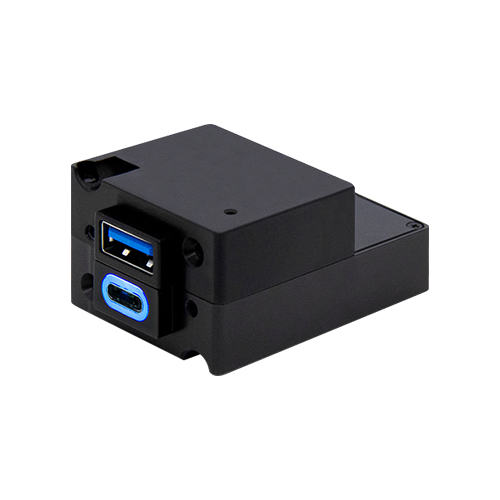

TA360-CAL MAX Power USB Charger | Dual USB-C PD/USB-A, 60W/15W, Lighted

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

In stock

EDMO # 6430360-11

MFR Part # 6430360-11

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TA360 Series is an ultra-fast charging port able to power new and future devices, delivering 60 watts of USB power per PD port. USB Power Delivery (PD) is the fastest charging technology available, providing 4 times more power than traditional USB-A and USB-C chargers.

Version (EDMO# 6430360-11) is configured with one USB-C with a blue lighted bezel and one USB-A charging port.

Features

3.0 amps per port output current
22 – 32 VDC input voltage
Delivers up to 60 watts of power per PD port, 15W per standard port
USB-C/USB-A connector dual configuration
Compatible with USB-C PD and USB-A devices
Charge one or two devices simultaneously at maximum power
Short circuit, power surges and over temperature protection
In-seat, cabin, cockpit and galley applications

Also Purchased

Specifications

Weight:

1.8 oz
Dimensions:

1.5 x 1.03 x 2.0 in
Input Voltage:

22 VDC – 32 VDC
Specification

Input power: USB-C PD 66 W per port (maximum) USB-A 18 W per port (maximum)
Output Voltage:

USB-C PD 5, 9, 15, 20 VDC per port (variable) USB-A 5 VDC ± 0.2 per port
Output Power:

USB-C PD 60 W per port (maximum) USB-A 15 W per port
Charging Port Type:

USB-C, USB-A
Mating Connector Kit:

p/n: 9017960 included
Mounting:

Front or rear
Certification:

RTCA DO-160G
