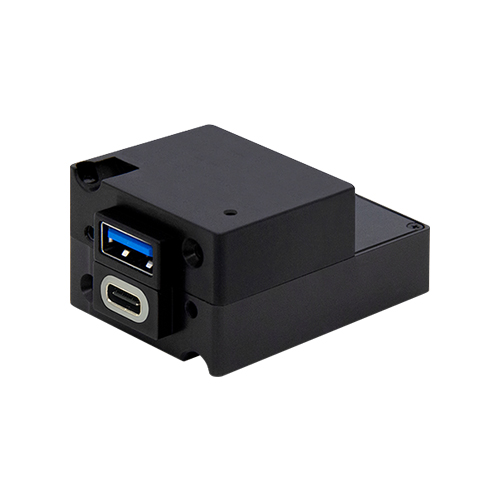

TA360-CA MAX Power USB Charger | Dual USB-C PD/USB-A, 60W/15W, Non-Lighted

Select an option

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing

In stock

EDMO # 6430360-1

MFR Part # 6430360-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TA360 Series is an ultra-fast charging portable to power new and future devices, delivering 60 watts of USB power per PD port. USB Power Delivery (PD) is the fastest charging technology available, providing 4 times more power than traditional USB-A and USB-C chargers.

This version (EDMO# 6430360-1) is non-lighted, configured with a dual-port (USB-A / USB-C PD), and rear power input.

Features

Simultaneously provides 3.0 amps per charging port
22–32 VDC input voltage
Delivers up to 60 watts of power per PD port
Dual, USB-C / USB-A connector
Compatible with USB-C PD, traditional USB-C and USB-A devices
Charge one or two devices simultaneously at maximum power
Short circuit, power surges, and over-temperature protection
In-seat, cabin, cockpit and galley applications

Also Purchased

Specifications

Weight

: 1.8 oz (51 g) Dimensions : 1.5 x 1.03 x 2.0 in
Input Voltage:

22–32 VDC Input Power: USB-C PD; 66 W per port (maximum) USB-A; 18 W per port (maximum) Output Voltage: USB-C PD; 5, 9, 15, 20 VDC per port (variable) USB-A; 5 VDC ± 0.2 per port Output Power: USB-C PD; 60 W per port (maximum) USB-A; 15 W per port Output Current: 3.0 amps per port USB Connector: Dual USB-C / USB-A configuration Mating Connector Kit: MCI P/N 9017960 (included) Mounting: Front or rear; faceplates and adapter plates (optional) Installation: In-seat, cabin, cockpit and galley
Certification:

FAA TSO-C71, EASA ETSO C71, RTCA DO-160G
