PIDG Quick Disconnect Receptacle | Series 187, 22 – 18 AWG, Straight Mount

Product Description

The series 187 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.

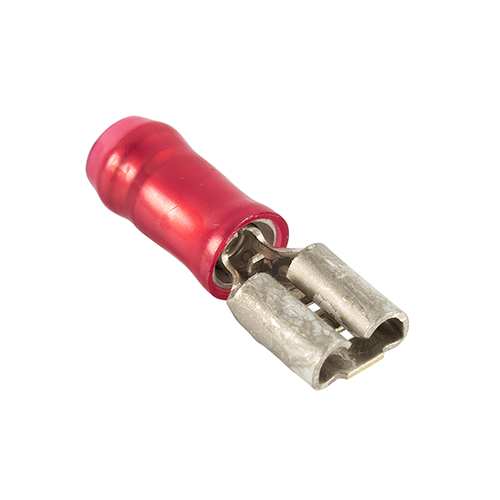

This PIDG quick disconnect receptacle (EDMO# 640917-1) has a straight connector, fits 22 – 18 AWG wire, and has a red insulation color.

Specifications

• Dimensions:
  20.32 x 5.84 mm
• Color:
  red
• Contact Material:
  tin-plate brass
• Insulation:
  nylon
• Mounting Angle:
  straight
• Mounting Style:
  push in
• Product Type:
  quick disconnect terminal
• Product Series:
  187 Faston
• Stud / Tab Size:
  4.75 x 0.51 mm
• Termination Style:
  crimp
• Voltage Rating:
  300V
• Wire Gauge:
  22 – 18 AWG

Product Codes

• Mfr Part No
  6409171
• CSA
  FILE # LR7189
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
• UL
  E66717

Documentation

• 640917-1 Envelope Drawing
