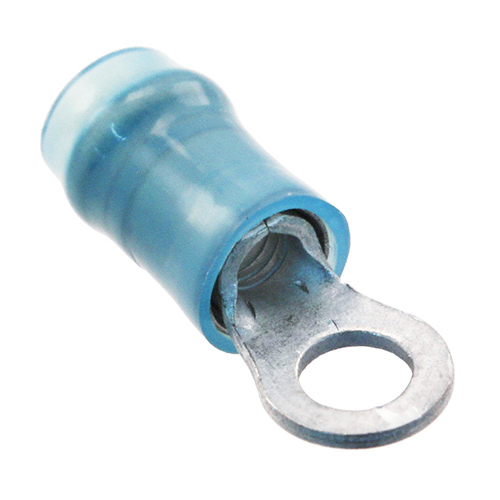

#10 PIDG Ring Terminal | 16 - 14 AWG Wire Size

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

Specifications

• Weight:
  1.021 g (per piece)
• Stud Size:
  #10
• AWG Size:
  16 AWG – 14 AWG
• Color:
  blue
• Barrel Type:
  closed
• Insulated:
  yes
• Wire/Cable Type:
  regular wire
• Termination Angle:
  straight
• Current Capacity:
  300V, max
• Plating Material:
  tin-plated copper
• Operating Temperature:
  105°C (221°F)

Product Codes

• Mfr Part No
  36160
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000

Documentation

• #10, 16–14 AWG ring terminal drawing (36160)
