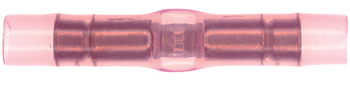

PIDG Butt Splice Connector | 22-16AWG, Red Translucent

PIDG Butt Splice Connector | 22-16AWG, Red Translucent

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 320559
MFR Part # 320559
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Pre-insulated diamond grip (PIDG) ring tongue terminals consist of a precision-formed metal wire barrel and a copper sleeve encased in insulating material made of nylon. The wire barrel contains serrations that provide maximum contact and tensile strength after crimping the terminal, splice, or end cap onto the wire.

Features

  • 22-16 AWG wire
  • Color-coded body (red)
  • Solderless
  • Serrated barrel
  • Copper sleeve
  • Tin-plated

Also Purchased

Specifications

  • Wire size:
    22-16 AWG
  • Wire insulation diameter:
    0.125 in. (3.18mm)
  • Splice material:
    Copper
  • Plating material:
    Tin
  • Color:
    Red translucent
  • Insulation sleeve material:
    Nylon

Related Products

Product Codes

  • Mfr Part No
    320559
  • MIL SPEC
    M7928/5-3
  • ECCN
    EAR99
  • MIL SPEC
    M7928/5-3
  • SCHEDULE B CODE
    8536.90.4000
