PIDG Quick Disconnect Receptacle | Series 205, 22 – 18 AWG, Straight Mount

Product Description

The series 205 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.

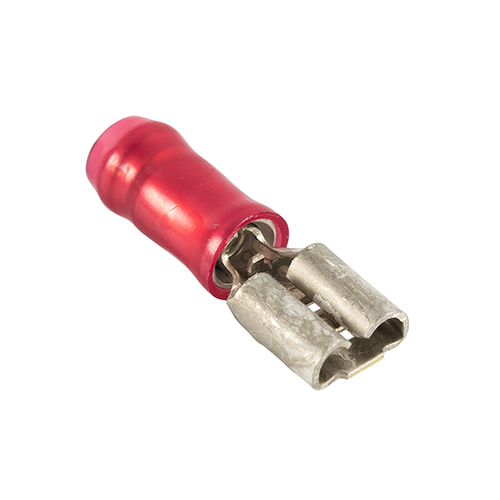

This PIDG quick disconnect receptacle (EDMO# 640911-1) has a straight connector, fits 22 – 18 AWG wire, and has a red insulation color.

Specifications

• Dimensions:
  20.32 x 6.35 mm
• Color:
  red
• Contact Material:
  tin-plated brass
• Insulation:
  nylon
• Mounting Angle:
  straight
• Mounting Style:
  push in
• Product Type:
  quick disconnect terminal
• Product Series:
  205 series
• Stud / Tab Size:
  5.21 x 0.81 mm
• Termination Style:
  crimp
• Voltage Rating:
  300V
• Wire Gauge:
  22 – 18 AWG

Product Codes

• Mfr Part No
  6409111
• CSA
  LR7189
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
• UL
  E66717

Documentation

• 640911-1 Envelope Drawing
