PIDG Quick Disconnect Receptacle | Series 187, 16 – 14 AWG, Straight Mount

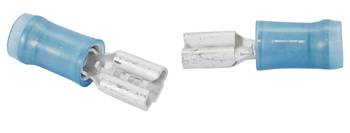

RECEPTACLE/Female, insulated, blue, 300 VAC, PIDG series. Stud/tab size: 4.75 mm X .51 mm. For use with 16-14 gauge wire.

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 640919-1
MFR Part # 6409191
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The series 187 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.


This PIDG quick disconnect receptacle (EDMO# 640919-1) has a straight connector, fits 16 – 14 AWG wire, and has a red insulation color.

Features

  • Fits within confined spaces
  • Low insertion force provides increased comfort
  • Meets UL 310 & CSA C22.2 No. 153 requirements

Also Purchased

Specifications

  • Description:
    20.32 x 5.84 mm
  • Color:
    red
  • Contact Materials:
    tin-plated brass
  • Insulation:
    nylon
  • Mounting Angle:
    straight
  • Mount Style:
    push in
  • Product Type:
    quick disconnect terminal
  • Product Series:
    187 Faston
  • Stud / Tab Size:
    4.75 x 0.51 mm
  • Termination Style:
    crimp
  • Voltage rating:
    300V
  • Wire Gauge:
    22 – 18 AWG

Related Products

Product Codes

  • Mfr Part No
    6409191
  • CSA
    LR7189
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
  • UL
    E66717
