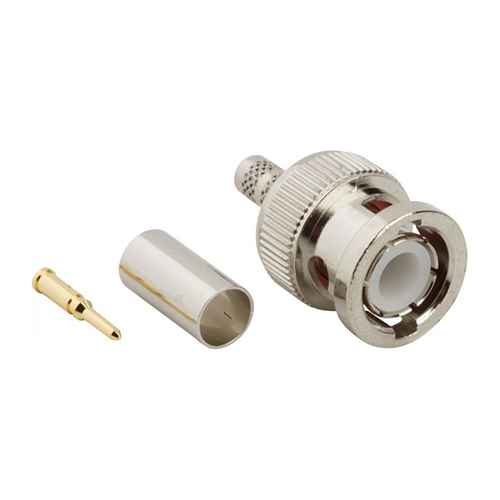

BNC RF Coaxial Connector | Straight Plug, Crimp, 50 Ω

BNC RF Coaxial Connector | Straight Plug, Crimp, 50 Ω

AMPHENOL

Call For Pricing
In stock
EDMO # 112514
MFR Part # 112514
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This coaxial connector (EDMO# 112514) is a BNC Straight Crimp Plug for RG-55, RG-142, RG-223, and RG-400 cable. This plug has a bayonet coupling mechanism, straight orientation, a nickel-plated brass body, and a gold-plated brass contact.

Features

  • 50Ω Impedance
  • 4GHz Maximum Frequency
  • Nickel-plated Brass Body
  • Gold-plated Phosphor Bronze Contact
  • Delrin Insulator

Also Purchased

Specifications

  • Specification
    Connector Type: BNC Coaxial
  • Connector Body Style:
    Straight Plug
  • Coaxial Termination:
    Crimp
  • Impedance:
    50 Ω
  • Coaxial Cable Types:
    RG-55, RG-142, RG-223, RG-400, Belden 83242, Times SF-142B
  • Body Material:
    Brass
  • Body Plating:
    Nickel-Plated
  • Contact Material:
    Brass
  • Contact Plating:
    Gold-Plated
  • Frequency Max:
    4 GHz
  • Coupling Mechanism:
    Bayonet
  • Operating Temperature:
    -40°C to 85°C

Product Codes

  • Mfr Part No
    112514
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
