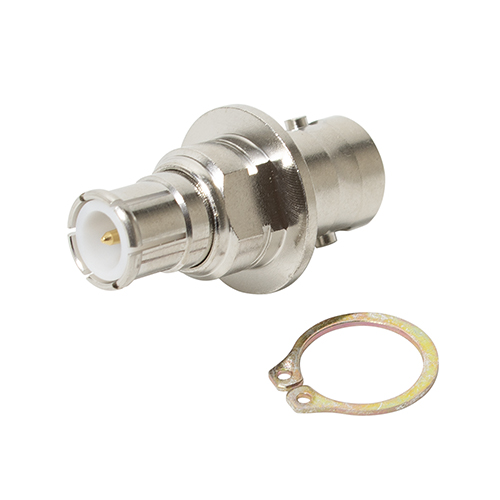

RF BNC Antenna Tray Mount Connector | Straight, BNC female, includes snap ring

Product Description

This BNC antenna tray mount connector features a BNC push-on plug on one end and a BNC jack on the other. This connector includes a snap ring.

Specifications

• Impedance:
  50Ω
• Frequency Range:
  DC – 4 GHz
• Dielectric Withstanding Voltage:
  1,500 VRMS, minium
• Insertion Loss:
  0.25 dB, max (when mated)
• Durability:
  500 cycles, minimum
• Temperature Range:
  -65°C to 165°
• Materials:
  Body: nickel-plated, brass Outer contact: nickel-plated, BeCu Contact: gold-plated, BeCu Insulation: PTFE, natural color Retaining ring: zinc-plated, steel

Product Codes

• Mfr Part No
  031-6728
• ECCN
  EAR99
• SCHEDULE B CODE
  8535.90.8040

Documentation

• 31-6728 drawing
