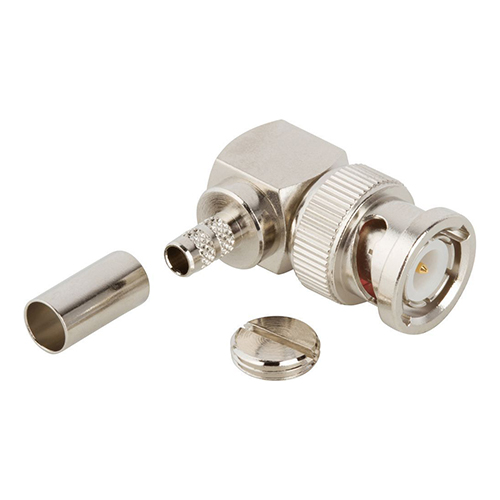

BNC RF Coaxial Connector | Right Angle Plug, Crimp, 50 Ω
Product Description
This coaxial connector (EDMO# 112526) is a BNC Straight Crimp Plug for RG-55, RG-142, RG-223, and RG-400 cable. This plug has a bayonet coupling mechanism, right angle orientation, a nickel-plated brass body, and a gold-plated brass contact.
Features
- 50Ω Impedance
- 4GHz Maximum Frequency
- Nickel-plated Brass Body
- Gold-plated Phosphor Bronze Contact
- Delrin Insulator
Specifications
Connector Type:
BNC Coaxial
Connector Body Style:
Right Angle Plug
Coaxial Termination:
Crimp
Impedance:
50 Ω
Coaxial Cable Types:
RG-55, RG-142, RG-223, RG-400, Belden 83242, Times SF-142B
Body Material:
Brass
Body Plating:
Nickel-Plated
Contact Material:
Brass
Contact Plating:
Gold-Plated
Frequency Max:
4 GHz
Coupling Mechanism:
Bayonet
Operating Temperature:
-40°C to 85°C
Product Codes
- Mfr Part No:112526
- EDMO #:112526
- Brand:AMPHENOL
- Category:Electrical Interconnect
- ECCN:ear99
- SCHEDULE B CODE:8536.69.4010
