TNC RF Connector | Right Angle, Crimp, 50 Ohm

TNC RF Connector | Right Angle, Crimp, 50 Ohm

AMPHENOL

Call For Pricing
In stock
EDMO # 031-2381
MFR Part # 031-2381
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.

TNC connectors are produced with standard and reverse polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors. Amphenol accomplishes this by inserting female contacts into plugs and male contacts into jacks to ensure quality. Other manufacturers may use reverse threading to accomplish reverse polarity keying.

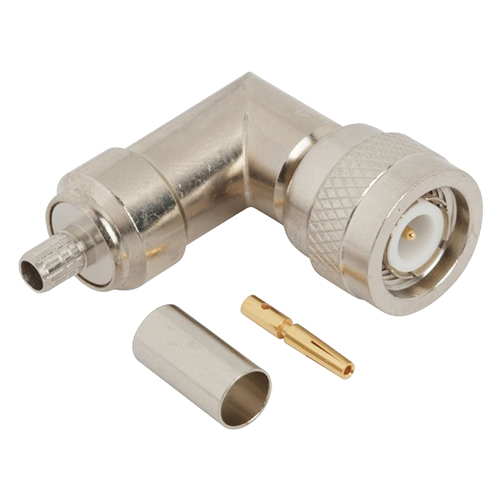

This TNC RF Connector (EDMO# 031-2381) is a right angle crimp plug for RG-55, RG-142, RG-223, and RG-400 cables.

Features

  • Threaded coupling interface ensures connector with not de-couple in vibration-intense applications
  • Durable construction
  • Expansive product line includes designs for many common cable types

Also Purchased

Specifications

  • Body Material:
    Brass
  • Body Finish:
    Nickel
  • Contact Material:
    Phosphor Bronze
  • Contact Finish:
    Gold
  • Cable Type:
    RG-55, RG-142, RG-223, RG-400
  • Frequency:
    11 GHz (max)
  • Impedance:
    50 Ω
  • Gender:
    Plug
  • Orientation:
    Right Angle
  • Termination Style:
    Crimp
  • Operating Temperature:
    -40° to 85°C

Related Products

Product Codes

  • Mfr Part No
    031-2381
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
