Commercial Mate-N-Lok Contact Plug Housing | 10-Position, 2-Row, Nylon, Free-Hanging

Product Description

Commercial Mate-N-Lok pin & Socket connectors allow wire bundles and harness to interface with other wire bundle, panel connections, or PC board connections.

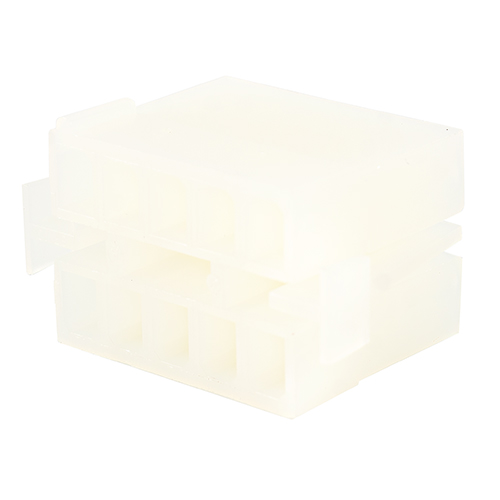

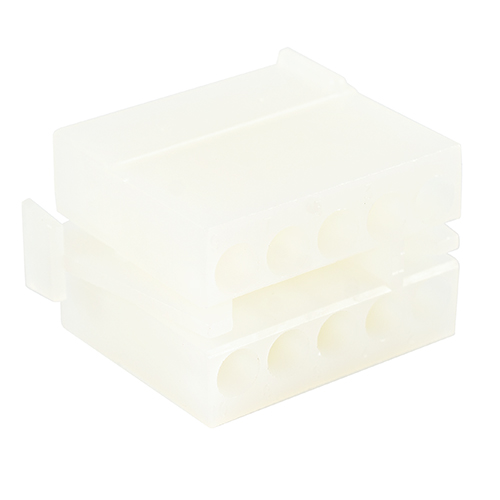

This Mate–N-Lok pin & socket housing connector (EDMO# 1-480285-0) features a 10-pin connection and to be used with commercial Mate-N-Lok socket contacts. To be used with cap housing 480286.

Specifications

• Dimensions:
  0.685 x 0.85 x 1 in (7.4 x 21.59 x 25.4 mm)
• Color:
  natural
• Connector Type:
  Mate-N-Loc pin & socket connector housing
• Contact Type:
  socket (female)
• Housing Material:
  nylon
• Mounting Style:
  free hanging
• Number of Positions:
  10 position
• Number of Rows:
  2 row
• Termination Style:
  crimp
• Voltage Rating:
  250V

Product Codes

• Mfr Part No
  1-480285-0
• ECCN
  EAR99
• SCHEDULE B CODE
  8538.90.6000
