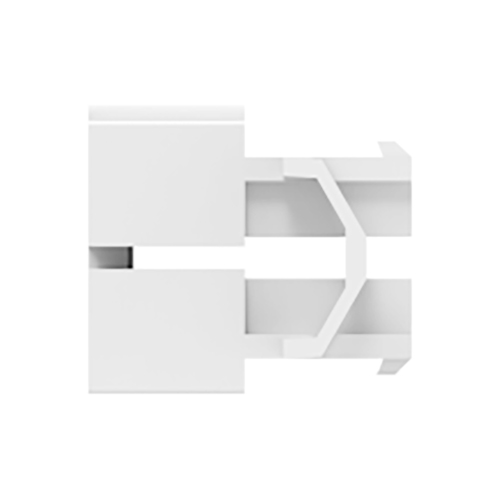

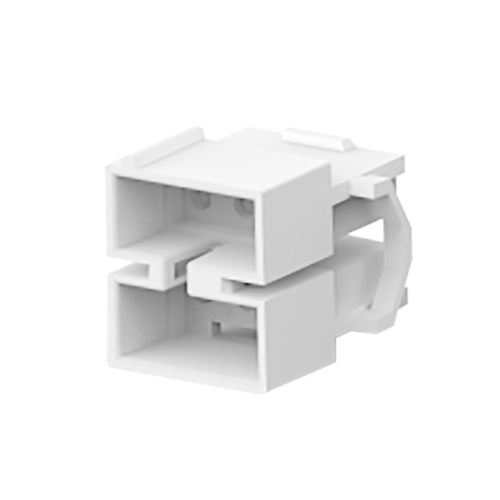

Commericial Mate-N-Lok Motor Mount Pin Housing | 6 Circuits

Product Description

Commercial Mate-N-Lok motor mount connectors allows wire bundles and harnesses to interface with other wire harnesses or panel connections.

This Mate-N-Lok connector (EDMO# 1-480271-0) features 6-pin connections and mates with Mate-N-Lok 1-480270 socket housing.

Specifications

• Dimensions:
  0.785 x 0.929 x 0.93 in (9.94 x 23.6 x 23.62 mm)
• Number of Contacts:
  supports up to 6
• Material:
  Nylon, natural color
• Voltage Rating:
  250 V
• Style:
  Matrix
• Housing Type:
  Pin housing
• Flammability Rating:
  UL94V-2
• Mate with:
  Mate-N-Lok 1-480270

Product Codes

• Mfr Part No
  1 4802710
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000

Documentation

• 1-480271-0 Mate-N-Lok Connector Drawing
