Commericial Mate-N-Lok Socket Plug | 6 Circuits

Product Description

Commercial Mate-N-Lok motor mount connectors allows wire bundles and harnesses to interface with other wire harnesses or panel connections.

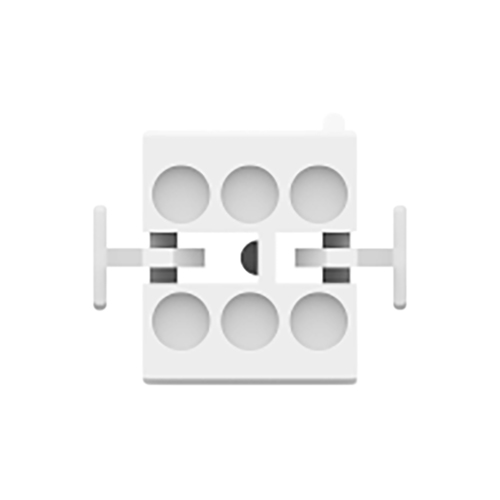

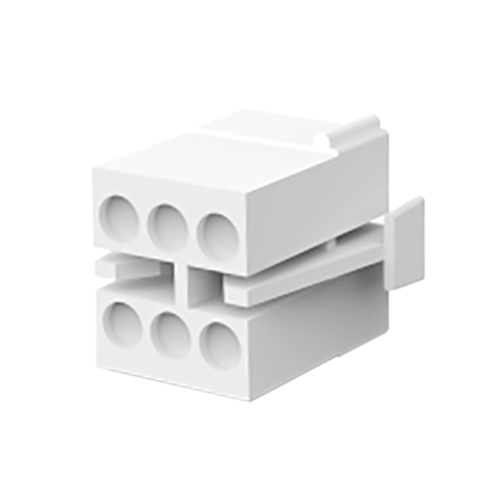

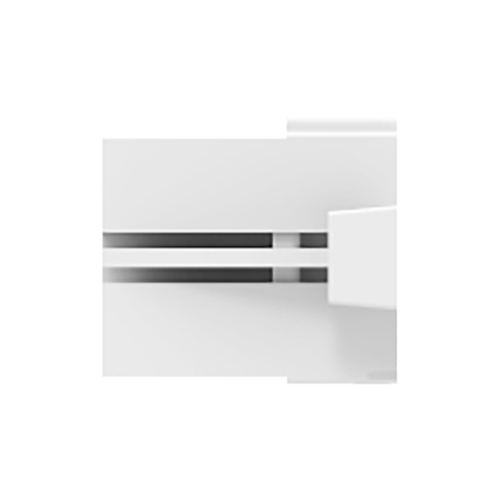

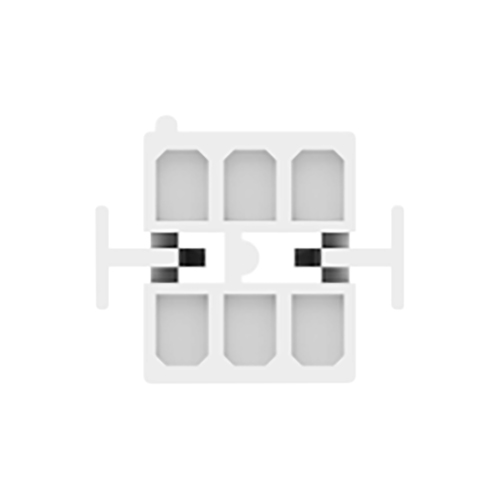

This Mate-N-Lok socket connector (EDMO# 1-480270-0) features 6-pin connections and mates with Mate-N-Lok 1-480271 pin housing.

Specifications

• Dimensions:
  0.685 x 0.61 x 0.85 in (17.40 x 15.49 x 21.59 mm)
• Number of Contacts:
  supports up to 6
• Material:
  Nylon, natural color
• Voltage Rating:
  250 V
• Style:
  Matrix
• Housing Type:
  socket housing
• Flammability Rating:
  UL94V-2
• Mate with:
  Mate-N-Lok 1-480270

Product Codes

• Mfr Part No
  1-480270-0
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000

Documentation

• 1-480270-0 Mate-N-Lok Connector Drawing
