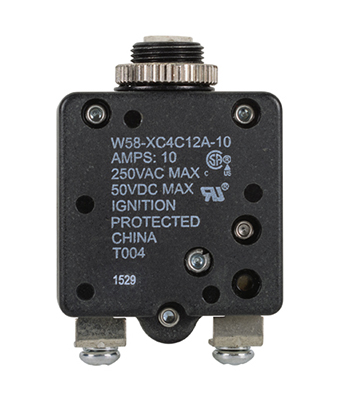

W58 Series Circuit Breaker | 10 Amp Rating, Push Actuator

Product Description

The W58 series are secondary panel-mount thermal circuit breakers with a push to reset actuator and series trip function. The thermal type breakers have an interrupt capacity of 2000 amps at 50 VDC and 1000 amps at 250 VAC. The button color has white with black rate marking with a red trip band.

Includes hardware.

Specifications

• Weight:
  Less than 1 1/2 oz. (42.5g)
• Vibration:
  Withstands to 10g at 10-55 Hz
• Mechanical Shock:
  Withstands to 10g
• Endurance Cycling:
  Over 1,000 cycles at 200% of rated load
• Dielectric Strength:
  Over 1,500 volts RMS
• Current Rating:
  10 amps
• Voltage Rating:
  AC 250V DC 50V
• Number of Poles:
  1
• Terminals:
  #6-32 screw terminals

Product Codes

• Mfr Part No
  4-1393249-0
• ECCN
  EAR99
• NSN
  5925014505656
• SCHEDULE B CODE
  8536.20.0020

Documentation

• W58 Series Breakers
