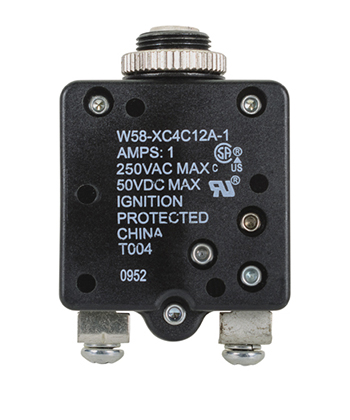

W58 Series Circuit Breaker | 1 Amp Rating, Push Actuator
Product Description
The W58 series are secondary panel-mount thermal circuit breakers with a push to reset actuator and series trip function. The thermal type breakers have an interrupt capacity of 2000 amps at 50 VDC and 1000 amps at 250 VAC. The button color has white with black rate marking with a red trip band.
Includes hardware.
Features
The W58-XC4C12A-1 circuit breaker (EDMO# W58-1) is rated for 1 amp.
- Single pole
- Series trip
- Cannot be manually tripped
- Button extends for visual trip indication
- Push-to-reset operation
- Screw terminal
Specifications
Weight:
Less than 1 1/2 oz. (42.5g)
Vibration:
Withstands to 10g at 10-55 Hz
Mechanical Shock:
Withstands to 10g
Endurance Cycling:
Over 1,000 cycles at 200% of rated load
Dielectric Strength:
Over 1,500 volts RMS
Current Rating:
1 amp
Voltage Rating:
AC 250V
DC 50V
Number of Poles:
1
Terminals:
#6-32 screw terminals
Product Codes
- Mfr Part No:3-1393249-9
- EDMO #:W58-1
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
