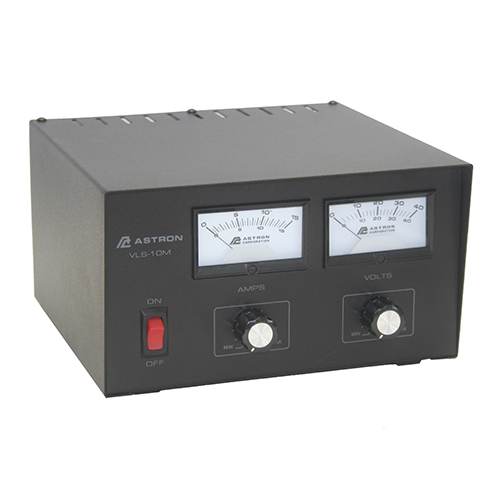

VLS-10M Power Supply | 220V, Variable 28VDC, 10A, With Meters


ASTRON

Call For Pricing
Available to order
EDMO # VLS10M/220
MFR Part # VLS-10M-220V
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The VLS-10M is a solid state electronically regulated power supply with fold-back current limiting to protect the power supply from excessive current or shorted output. Chassis mounted fuse and less than 5mV ripple peak to peak (full load and low line).

This power supply (EDMO#VLS10M/220) has a variable 28 volt DC output, 10 amp current, 220 volt AC input power supply.

Features

  • Solid state electronically regulated
  • Fold-back current limiting
  • Crowbar over voltage protection
  • Maintains regulation and low ripple at low line input voltage
  • Heavy duty heat sink
  • Three conductor power cord
  • Separate volt and amp meters
  • Backlit meters
  • 28 volt DC power supply
  • Output voltage adjustable from 5-32 volts
  • Current limit adjustable from 1.5 amps to full load

Specifications

  • Weight:
    20 lb
  • Dimensions:
    9 x 10.5 x 5 in.
  • Continuous duty amps:
    8 @ 28V, 4 @ 12V, 2 @ 5V
  • ICS amps:
    10 @ 28
  • Output voltage:
    5-32 adjustable
  • Current limit:
    1.5A to full load

Related Products

Product Codes

  • Mfr Part No
    VLS-10M-220V
  • ECCN
    5A991
  • SCHEDULE B CODE
    8504.40.9580
