DC to DC Voltage Converter | 22-32 VDC, 12A
Product Description

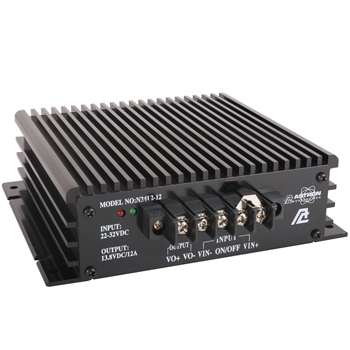

The N2412-12 DC/DC voltage converter offers high-efficiency converting, stepping down an input voltage of 22-32 VDC to a highly regulated output voltage of 13.8 VDC. These converters provide no isolation between their input and output negative terminals and are designed for FM transceivers and other applications requiring a 12V power source converted from a 24V negative ground battery.
Features
- Step-down 22-32VDC to 13.8VDC conversion
- Regulated with pulse modulation at 20 KH
- Over-voltage and short-circuit protection
- Input-side over-voltage/transient protection
- Input-side reverse polarity protection
Specifications
Weight:
1.8 lb
Dimensions:
2 x 6.2 x 6 in
Input Voltage:
22 VDC – 32 VDC
Output Voltage:
13.8 VDC
Continuous Current:
10A
Peak Current:
12A
Ripple:
20 mVmns
Overvoltage Protection:
17 VDC
Efficiency:
88%
Product Codes
- Mfr Part No:N2412-12
- EDMO #:2412-12
- Brand:ASTRON
- Category:Inverters & Converters
