LS-35A Power Supply | 28 VDC, 35A


ASTRON

Call For Pricing
Available to order
EDMO # LS-35A
MFR Part # ls-35a
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

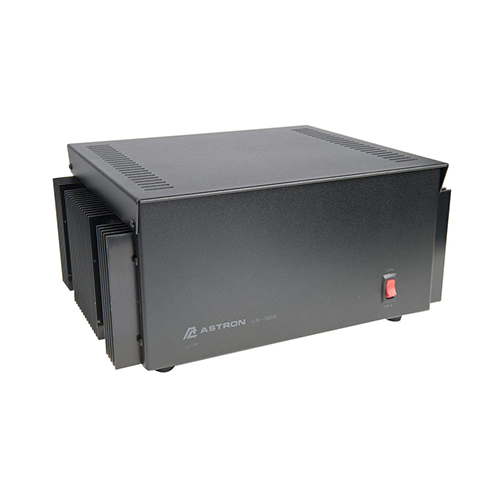

The LS-35 Series is a solid state electronically regulated power supply with fold-back current limiting to protect the power supply from excessive current or shorted output. Chassis mounted fuse and less than 5mV ripple peak to peak (full load and low line).

Version LS-35A is a 28 volt DC output, 35 amp, 115 volt AC  input power supply.

Features

  • Solid state electronically regulated
  • Fold-back current limiting
  • Crowbar over voltage protection
  • Maintains regulation and low ripple at low line input voltage
  • Heavy duty heat sink
  • Three conductor power cord
  • 28 volt DC power supply
  • Output voltage adjustable from 22-32 volts
  • Current limit adjustable from 1.5 amps to full load

Specifications

  • Weight:
    49 lb
  • Dimensions:
    13.75 x 12.125 x 6 in.
  • Continuous duty amps:
    27A @ 28V
  • ICS amps:
    35A @ 28V
  • Output voltage:
    28 Volts DC (Adjustable from 22.0-32.0 Volts DC)
  • Current limit:
    1.5A to full load

Related Products

Product Codes

  • Mfr Part No
    ls-35a
  • ECCN
    5A991
  • SCHEDULE B CODE
    8504.40.9580
