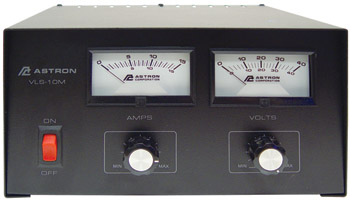

VLS-10M Power Supply | Variable 28VDC, 10A, With Meters
Product Description
The VLS-10M is a solid state electronically regulated power supply with fold-back current limiting to protect the power supply from excessive current or shorted output. Chassis mounted fuse and less than 5mV ripple peak to peak (full load and low line).
Version VLS-10M is a variable 28 volt DC output, 10amp, 115 volt AC input power supply with dual meters.
Features
- Solid state electronically regulated
- Fold-back current limiting
- Crowbar over voltage protection
- Maintains regulation and low ripple at low line input voltage
- Heavy duty heat sink
- Three conductor power cord
- Separate volt and amp meters
- Backlit meters
- 28 volt DC power supply
- Output voltage adjustable from 5-32 volts
- Current limit adjustable from 1.5 amps to full load
Specifications
Weight:
20 lb
Dimensions:
9 x 10.5 x 5 in.
Continuous duty amps:
8 @ 28V, 4 @ 12V, 2 @ 5V
ICS amps:
10 @ 28
Output voltage:
5-32 adjustable
Current limit:
1.5A to full load
Product Codes
- Mfr Part No:VLS-10M
- EDMO #:VLS-10M
- Brand:ASTRON
- Category:Power Supply
