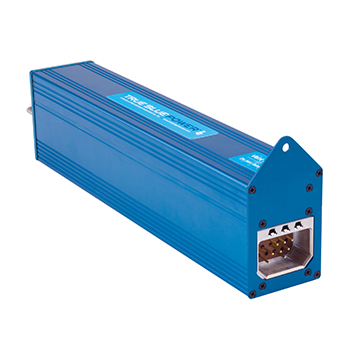

TS835 Emergency Power Supply | 24.5 VDC at 20A output, 4.5 Ah

TS835 Emergency Power Supply | 24.5 VDC at 20A output, 4.5 amp-hour

    TRUE BLUE POWER

    Call For Pricing
    Available to order
    EDMO # TS835
    MFR Part # MD835-1
    Need help placing an order? Call 800-235-3300 or Contact us

    Product Description

    The TS835 Emergency Power supply features advanced Nanohosphate® lithium-ion cell chemistry to offer reduced weight, maintenance costs, and improved 10-year life expectancy  over lead-acid batteries.

    This TS835 emergency power supply (EDMO# TS835) provides 24.5 VDC at 20 A output power with a 4.5 amp-hour capacity.

    Features

    • Automatically provides 24.5 VDC power for critical or standby power
    • 4.5 amp-hour Nanophosphate® lithium-ion battery
    • Uses advanced NanoPhosphate® lithium-ion technology
    • Maintains full charge by recharging during normal flight operations
    • Lightweight — Only 4.8 lb
    • Direct replacement for L-3 Avionics/JET PS-835 or PS-855 using the same rack mount and connector
    • Two-year maintenance schedule
    • 10-year life expectancy
    • Part 23 AML STC certified
    • Designed and built in Wichita, Kansas USA

    Also Purchased

    Specifications

    • Weight:
      4.8 lb
    • Dimensions:
      3.1 x 12.7 x 2.4 in
    • Model Number:
      TS835-1
    • Capacity:
      4.5 Ah, nominal
    • Input Voltage:
      24 VDC – 32 VDC at 7A, maximum
    • Output Power:
      24.5 VDC at 20A, maximum
    • Protection:
      Factory replaceable fuse

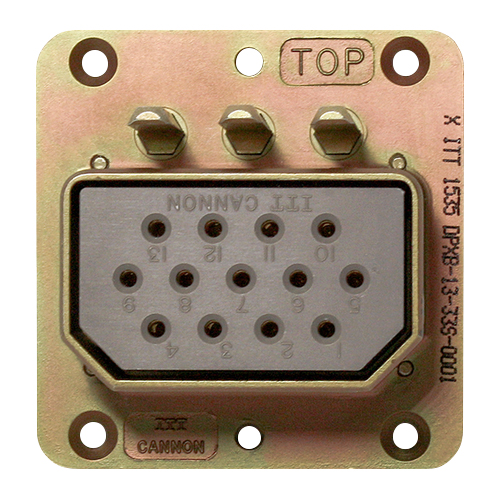

    • Mating Connectors:
      DPXB13-33S-0001 (MCI P/N 9016600-2 or 9016600-5)

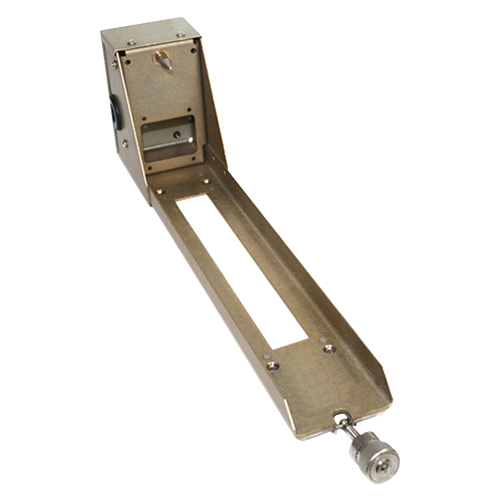

    • Rack Mount Installation:
      1/4 ATR rack (MCI P/N 5120-107-C01)

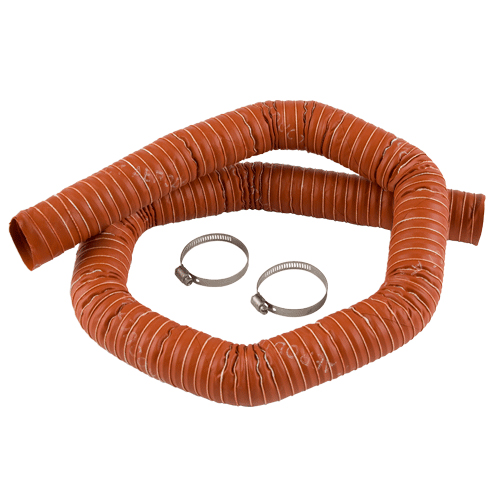

    • Optional Vent Kit:
      MCI P/N 9017983
    • Remote Test Switch
      : Remote-mounted self-test switch required, MCI P/N 9017176 or equivalent
    • Case:
      Anodized aluminum, blue
    • Specification
      Certification: FAA TSO C179a certified EASA ETSO C179a certified ANAC TSO C179a certified Part 23 AML STC certified RTCA/DO-160F qualified RTCA/DO-311 qualified

    Product Codes

    • Mfr Part No
      MD835-1
    • ECCN
      9A991
    • SCHEDULE B CODE
      8507600000
