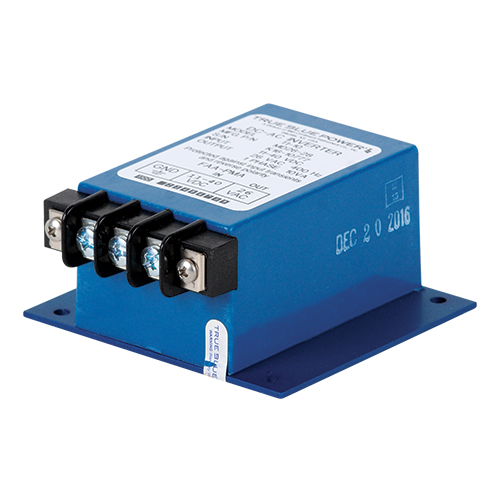

TI10 DC-to-AC Inverter | 11–40 VDC In, 26 VAC Out, 10 VA, Sine Wave

Product Description

The TI10 DC-to-AC inverter provides 26-volt, 400 Hz AC power. The voltage and frequency of its pure sine wave output remains stable regardless of input fluctuations. The TI10 is small and lightweight for convenient installation in your aircraft and is FAA PMA approved.

Specifications

• Weight:
  0.28 lbs
• Dimensions:
  2.8 x 3.0 x 1.5 in
• Input Current:
  1.7A max (at 11 VDC input, 10 VA load)
• Output Voltage:
  26 ± 1 VAC, 400 Hz ± 0.5%, single phase
• Output Power:
  10 VA Pure sine wave, < 3% distortion
• Altitude:
  –1,000 to 50,000 feet
• Humidity:
  0 to 95% at 25°C
• Temperature:
  –55°C to 70°C
• RF Emissions:
  RTCA DO-160F, Section 21, Category M
• Vibration:
  0.02 in. dbl. ampl., 3g @ 5 to 55 Hz
• Connector:
  Terminal block
• Mounting:
  Base mount
• Certification:
  FAA PMA approved

Product Codes

• Mfr Part No
  MD26-28
• ECCN
  9A991
• PMA
  PQ3738CE
• SCHEDULE B CODE
  8504.40.9570
