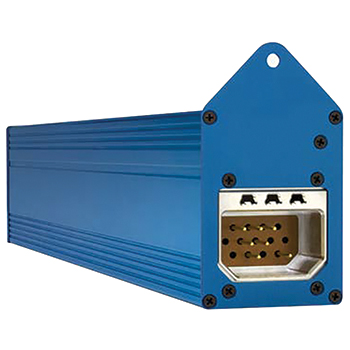

TS835 Emergency Power Supply | 24.5 VDC at 20A output with 3–5 VDC adjustable output, 4.5 Ah

TS835 Emergency Power Supply | 24.5 VDC at 20A output with 3–5 VDC adjustable output, 4.5 amp-hour

Select an option

TRUE BLUE POWER

Call For Pricing

Available to order

EDMO # TS835-5

MFR Part # MD835-5

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TS835 Emergency Power supply features advanced Nanohosphate® lithium-ion cell chemistry to offer reduced weight, maintenance costs, and improved 10-year life expectancy over lead-acid batteries.

This TS835 emergency power supply (EDMO# TS835-5):

3 VDC – 5 VDC adjustable output
24.5 VDC at 20A output
4.5 amp-hour capacity

Features

Automatically provides 24.5 VDC power for critical or standby power
4.5 amp-hour Nanophosphate® lithium-ion battery
Includes an integrated 3.0 VDC – 5.5 VDC adjustable output (TS835-5 model)
Uses advanced NanoPhosphate® lithium-ion technology
Maintains full charge by recharging during normal flight operations
Lightweight — Only 4.8 lb
Direct replacement for L-3 Avionics/JET PS-835 or PS-855 using the same rack mount and connector
Two-year maintenance schedule
10-year life expectancy
Part 23 AML STC certified
Designed and built in Wichita, Kansas USA

Specifications

Weight:

4.8 lb
Dimensions:

3.1 x 12.7 x 2.4 in
Model Number:

TS835-5
Capacity:

4.5 Ah, nominal
Input Voltage:

24 VDC – 32 VDC at 7A, maximum
Output Power:

24.5 VDC at 20A, maximum 3.0 VDC – 5.5 VDC adjustable output, 5A maximum
Protection:

Factory replaceable fuse
Mating Connectors:

DPXB13-33S-0001 (MCI P/N 9016600-2 or 9016600-5)
Rack Mount Installation:

1/4 ATR rack (MCI P/N 5120-107-C01)
Optional Vent Kit:

MCI P/N 9017983
Remote Test Switch:

Remote-mounted self-test switch required, MCI P/N 9017176 or equivalent
Case:

Anodized aluminum, blue
Certification:

FAA TSO C179a certified EASA ETSO C179a certified ANAC TSO C179a certified Part 23 AML STC certified RTCA/DO-160F qualified RTCA/DO-311 qualified
