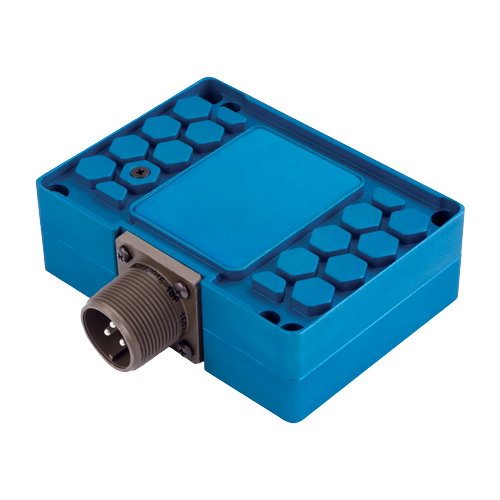

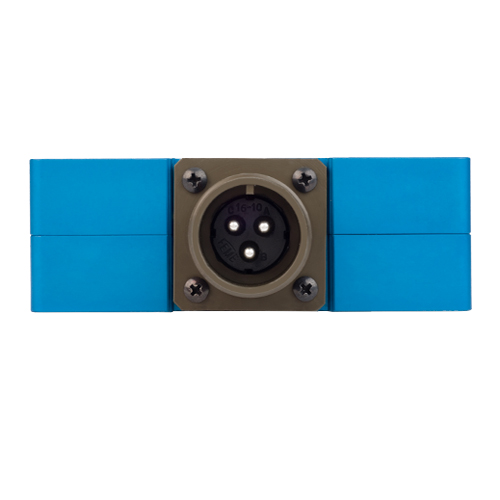

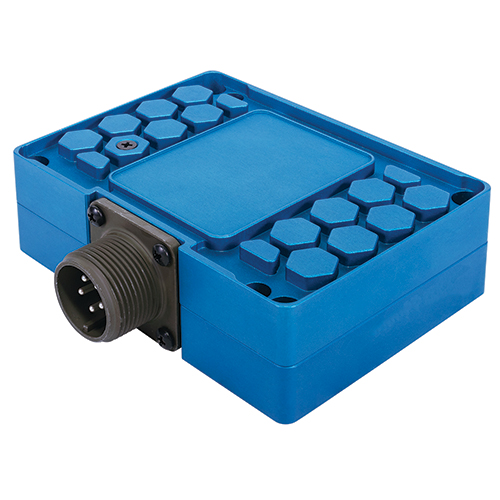

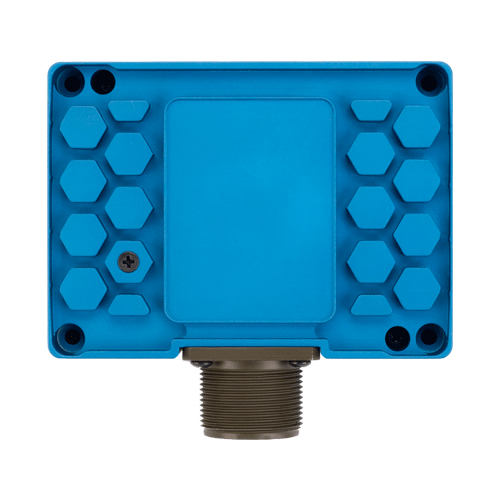

TC240 DC-to-DC Converter | 240 Watt, Includes Remote On/Off option
Product Description
The TC240 DC-to-DC Converter produces 240 watts of power from the aircraft's 28-volt VDC input. It features a variable output voltage ranging from 5 VDC – 18 VDC for powering electronic equipment throughout the aircraft — including in-seat, cabin and cockpit power applications. The TC240 DC power converter is suitable for nearly any common general, business, or commercial aviation applications
This TC240 model (EDMO# 6430240-2) includes a remote On/Off switch option.
Features
- Supplies 240 watts of DC power
- Adjustable 5 VDC – 18 VDC output
- Lightweight – only 0.70 lb
- Input transient, overload and short circuit protection, reverse polarity protection, and temperature monitoring
- 95% efficient
- No cooling required
- Mounts in the floor, cabin wall, or outside the pressure vessel
- Designed in Wichita, Kansas, USA
Specifications
Weight:
0.7 lb
Dimensions:
2.75 x 3.74 x 1.29 in
Input Voltage:
22 VDC – 32 VDC
Input Current:
10.0 A, nominal
Output Voltage:
5 VDC – 18 VDC, adjustable
Output Power:
240 watts
Altitude:
55,000 ft
Temperature:
-67°F to 158°F (-55°C to 70°C)
Protection:
Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
Remote Controls:
Remote On/Off included
Mating Connector:
MCI P/N 9018655 (included)
Case:
Anodized aluminum, blue
Certification:
FAA TSO-C71 certified
RTCA DO-160G qualified
Product Codes
- Mfr Part No:6430240-2
- EDMO #:6430240-2
- Brand:TRUE BLUE POWER
- Category:Inverters & Converters
