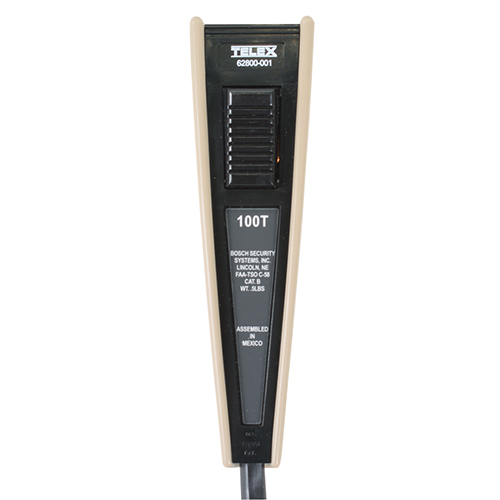

100TRA Dynamic Microphone | PJ-068 Plug

TELEX COMMUNICATIONS

Call For Pricing

In stock

EDMO # 62800-001

MFR Part # 62800-001

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Telex 100TRA is a noise-canceling aviation microphone that consists of a dynamic microphone, amplifier, and push-to-talk switch in a rugged plastic housing. The two-stage solid-state amplifier adjusts for optimum transmission power.

The 100TRA features a beige and black case with wood trim. FAA TSO approved.

Features

Includes coil cord, right-angle plug, hang-up bracket, and mounting hardware
Approved under FAA TSO-C58
Two-stage amplifier
Noise Cancellation

Also Purchased

Specifications

Weight:

9 oz (255 g)
Dimensions:

1.25 x 5.062 x 1.312 in (31.75 x 128.57 x 15.88 mm), microphone
Frequency Response:

100 Hz – 5,000 Hz
Sensitivity:

-48 dB (1V/µbar @ 1 kHz, 12 VDC supply, 150Ω)
Impedance:

Matches 50Ω – 600Ω
Amplifier:

Gain adjustable over approximate ±5 dB range Supply voltage: 8 – 30 VDC Current: 15 - 30 mA @ 12 – 24 VDC while PTT switch is pressed, 1.4 mA when not pressed
Switching:

PTT switch activation turns amplifier and bring PTT
Cable:

Coiled, 3-conductor, black retracted length: 11 in extended length: 5 ft
Plug:

PJ-068 equivalent
FAA Approval:

TSO-C58
