Airman 850 ANR Headset | Double-sided

Select Connector

TELEX COMMUNICATIONS

Call for pricing

EDMO # 301317-00X

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

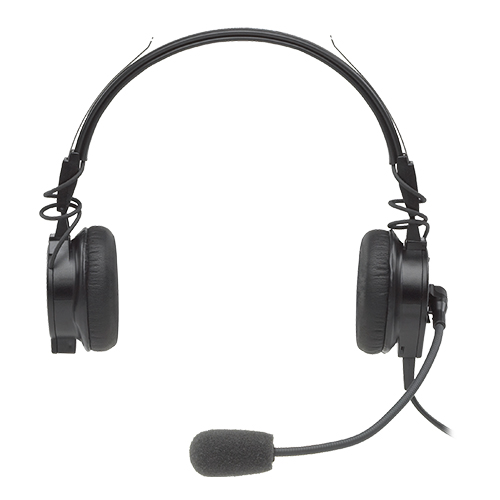

The Telex Airman 850 ANR headset is an ultra-lightweight commercial headset that dramatically improves the clarity of communication and does not require batteries or panel power—active noise reduction is powered by microphone bias.

Using the latest in ANR circuitry to target and reduce wind noise in jet cockpits, the Airman 850 provides up to 12 decibels (dB) of noise attenuation between 100 and 2000 Hz. It also features a miniature, amplified, noise-canceling electret microphone that provides superior 400Hz hum rejection. The flexible boom rotates 320° and can be worn on either side of the head.

The Airman 850 is available for Boeing, Airbus, and other airframes and does not require specialized intercom adapters. Approved for aircraft use under FAA TSO-C57a and TSO-C58a.

Features

No batteries required
Noise reduction targeted at wind noise for reduced fatigue
Combined active noise reduction and microphone noise cancellation provide clear in-flight communications
Ultra-lightweight headset combined with pillow-like ear cushions ensure comfort on long flights
Folds flat into a custom protective carrying case
FAA TSO approved

Specifications

Weight:

4.02 oz (113.98 g)
Boom:

Flexible Boom
Color:

Black
Cord Length:

5.58 ft (1.7 m)
Ear Seals:

Plush foam
Frequency Response:

350 Hz – 15,000 Hz
Impedance:

150Ω ±20%
Microphone Frequency Response:

300 Hz – 6,000 Hz
Microphone Impedance:

50Ω – 600Ω
Microphone Sensitivity:

-51 ±3 dB dBV/Pa
Microphone Type:

Noise-Cancelling Amplified Electret
Noise Reduction:

≤12 dB
Power:

Via mic bias
Power Requirements:

Microphone Bias (requires boom microphone to be powered continuously)
Speaker:

Dynamic
Speaker Sensitivity:

85 – 95 SPL/mW
Stereo:

No
FAA Approvals:

TSO-C57a and TSO-C58a
