Airman 8+ ANR Headset | XLR5 Connector, 600Ω

Select Connector

TELEX COMMUNICATIONS

Call For Pricing

In stock

EDMO # 8P-0211

MFR Part # AIRMAN8P-0211

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Telex Airman 8+ is a lightweight noise-reducing headset designed specifically for optimizing pilot communications in commercial and business turbine aircraft. Building on the tradition of the Airman 850 and the Airman 8, Airman 8+ has improved ANR capability and comfort.

The Airman 8+ is among the lightest Active Noise Reduction headsets on the market and one of only three FAA TSO-C139a approved ANR headsets to utilize Telex’s proprietary battery-free system. Larger pliable ear cushions and headband pad combined with dual-axis ear cup pivots to provide long flight wearing comfort.

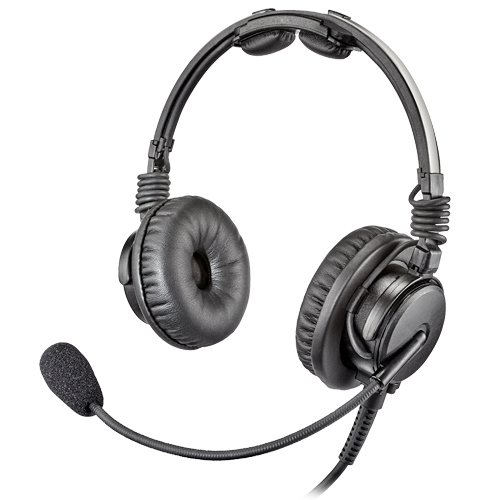

This Airman 8+ headset (EDMO# 8P-0211) is double-sided, with an XLR-5-12C connector, and has a 600Ω impedance. (*Pictured with a small headband pad).

Features

Flexible boom-mounted microphone, positionable for right- or left-side use
Light-weight, battery-free ANR with onboard fail-safe to ensure constant communication
Soft leatherette ear cushions and headband pad
Stainless steel headband and pivot points for superior durability
FAA TSO-C139a approved

Specifications

Weight

: 6.7 oz with cord
Cord Length:

6 ft ± 4 in
Color:

Black/Stainless Steel
Connector:

5-pin Male XLR5
Headphone Type:

Dynamic
Headphone Impedance:

600Ω ±20% @ 1 kHz
Headphone Frequency Response:

(Per RTCA DO-214a) <15dB max. to min. over the range of 315 to 3150Hz
Headphone Sensitivity:

(Per RTCA DO-214a) 92 ±5 dBSPL (normal) 98 ±5 dBSPL (high)
Microphone Element:

Noise-canceling amplified electret
Microphone Sensitivity:

(Per RTCA DO-214a) -28dB ±3dB re 1V/Pa at 1kHz, 12V
Microphone Operating Voltage:

(Per RTCA DO-214a) 8-28 VDC (470 Ω load circuit)
ANR Power:

Via XLR pin 5
Controls:

Active Noise Reduction On/Off Switch Volume Normal/High Switch
