Integra 406 AF ELT | Includes Transmitter and Battery

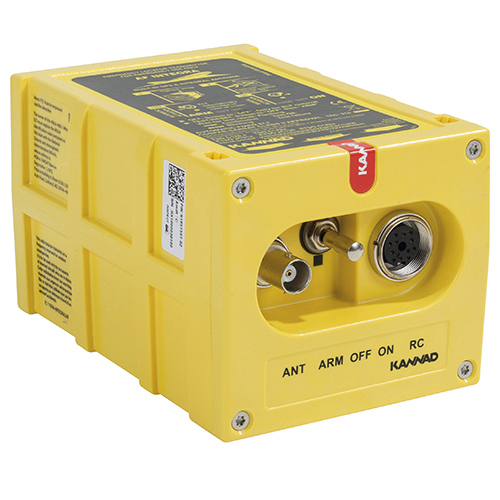

Integra 406 AF ER ELT | Includes Transmitter and battery for Robinson Aircraft

MCMURDO

Call For Pricing

Available to order

EDMO # 51501-02

MFR Part # S1851501-02

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Integra 406 ELT offers an efficient option installing or retrofitting a 406 MHz ELT with GPS capabilities in an individual or fleet aircraft. The Integra ELT transmits distress signals and location data via a 406 MHz signal to the COSPAS-SARSAT satellite network in conjunction with a homing signal on 121.5 MHz which allows rescuers narrow down the search area to 490 square miles. With the Integra's GPS capabilities, it is possible for the ELT to send exact GPS coordinates of a crash sites location — further narrowing the search area to 0.03 square miles while lowering response times to as little as 30 minutes.

This Integra 406 ELT (EDMO# 51501-02) includes the Integra 406 AF transmitter and battery.

Features

Automatic fixed (AF) emergency locator transmitter
Operates on 406 MHz and 121.5 MHz frequencies
Integrated internal 406 MHz backup antenna
Compact and lightweight
Operating temperature as low as -40C for 24 hours on 406 MHz and over 48 hours on 121.5 MHz
Does not require an external power supply
Remote control panel offers optional 2-wire or 3-wire installations
Universal mounting bracket provides easy retrofitting
Weight: 1.873 lb (850 g), including batteries
Dimensions: 6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm)
Approvals: COSPAS-SARSAT, RTCA DO-160, TSO-C126a, C142a and ETSO 2C91a, 2C126, C142a

Also Purchased

Specifications

Weight:

1.873 lb (850 g), including batteries
Dimensions:

6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm)
Frequency:

406.037 MHz 121.5 MHz
Color:

Yellow
Material:

Molded plastic
Functions:

Integrated 406 MHz antenna Built-in GPS (antenna/receiver)
Battery:

6-year replacement interval Accessories are powered by ELT battery
Interfaces:

DIN12 socket for remote control panel and programming dongle BNC antenna connector
Controls and Indicators:

Arm/Off/On switch Bright red LED Internal buzzer Outside buzzer option
Operating Lifetime:

-20°C: 24 hr, (class 2 ELT), min. -40°C: 24 hr, (clase 1 ELT), min.
Approvals:

COSPAS-SARSAT Class 2 (-20°c to +55°c) or class 1 (-40°C to +55°C) ER type RTCA DO-160/EUROCAE ED14 Environmental conditions TSO-C126a, C142a and ETSO 2C91a, 2C126, C142a
