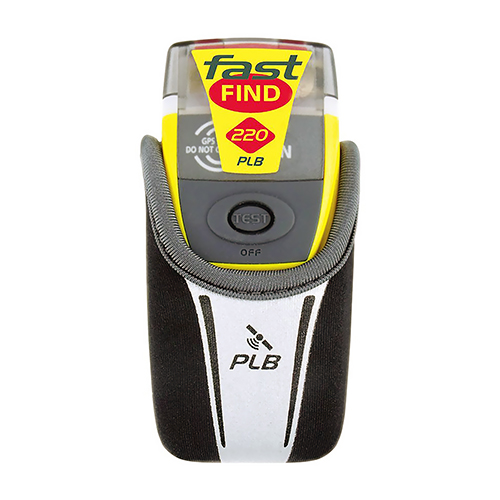

FastFind 220 PLB | with GPS

Product Description

The FastFind 220 is a Galileo-enabled Personal Location Beacon (PLB) designed to alert search and rescue services allowing them to quickly locate you in the event of an emergency on either land or sea. When activated the FastFind 220 transmits a coded message on the 406 MHz distress frequency which is monitored by the Cospas-Sarsat satellite system. FastFind PLB features a dual internal GNSS receiver, using both Galileo and GPS technologies, to pinpoint a location to within 62 meter. Then rescue services are then able to pinpoint the precise location using the inbuilt 121.5 Mhz homing transmitter.

Specifications

• Weight:
  5.36 oz (152 g) Dimensions: 1.34 x 1.85 x 4.17 in (34 x 47 x 106 mm) Frequency: 406.031 MHz (alert) / 121.5 MHz (homer) Power: 5W (alert) / 50MW (homer) nominal Unique ID Number: Factory or dealer programmed GNSS Receiver: GPS(L1)+GALILEO(E1), 72 channel, ceramic patch antenna Standards: Cospas-Sarsat T.001/T.007 class2, RTCM 11010.2, ETSI EN 302152-1,, AS/NZS 4280.2, NSS-PLB11 Sealing Depth: Immersion to 10m (30ft) for 5 mins Temperature Rating: -20°C to 55°C (-4 to 131°F), operating -30°C to 70°C (-22 to 158°F), storage Altitude: 12,192 m (40,000 ft) Buoyancy: Category 2, will not float (keep in buoyancy pouch provided) Battery Type: Lithium Manganese Transmit Duration: >24 hr @ -20°C (-4°F) Battery Life (storage): 6-years from date of manufacture Battery Replacement: Service centre Battery Use: Logged by microprocessor Indicator Light: High brightness LED signal light SOS flash light: Morse code SOS flash pattern, 30 operations Activation: Manual, three stage Self-test: Tests transmitters, battery and light

Product Codes

• Mfr Part No
  91-001-220A-C
• ECCN
  7A994
• SCHEDULE B CODE
  8526.91.0070
