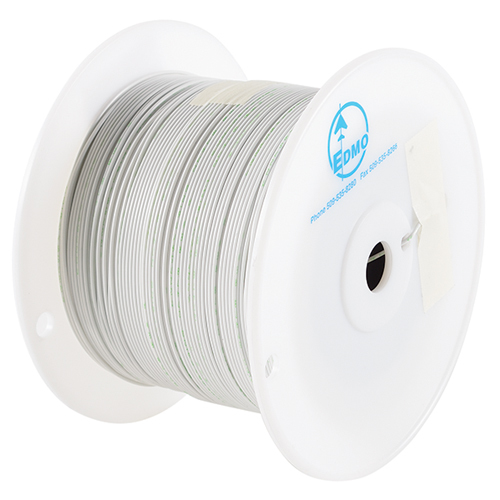

M22759/41 Dual Layer Irradiation Tefzel Wire | 20 AWG, White

Product Description

SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

SAE AS22759/41 is ideal for use in avionics because of its superior resistance to moisture, chemicals, solvents, smoke, and flame. A nickel-plated copper conductor and dual-layer cross-linked, extruded ETFE insulation also give this wire multi-purpose qualities for other commercial applications.

This M22759/41 tefzel hook-up wire (EDMO# 20G/41-9) has a 20 AWG, nickel-plated copper conductor and a dual layered irradiation, cross-linked, extruded ETFE insolation. Colored white.

Specifications

• Gauge:
  20 AWG
• Stranding:
  19/32
• Conductor Size:
  0.62 mm2
• Diameter:
  0.058 in, nominal
• Weight:
  4.7 lb/MFT
• Resistance (@ 20°C):
  9.77 Ω/MFT

Product Codes

• Mfr Part No
  M22759/41-20-9
• MIL SPEC
  M22759/41-20-9
• ECCN
  EAR899
• MIL SPEC
  M22759/41-20-9
• SCHEDULE B CODE
  8544110050
