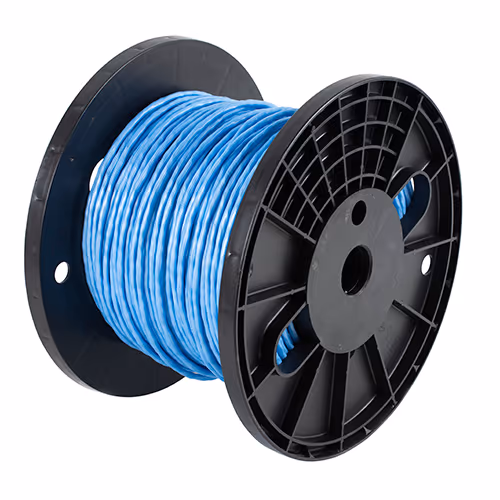

E10424 Ethernet Cable | 24 AWG, 2 Pair, 4 Conductor
Product Description
The E10424 is a 2 pair, 10/100 Base-T CAT5e cable (exceeding ANSI/TIA-568-C.2 CAT 5e Channel Requirements) with a smaller overall diameter and weight while retaining performance and required operating parameters up to 268 ft. The twisted-pair construction of silver-plated copper conductors assures uniform conductivity with excellent solderability. The 100% foil and 90% braided shielding provide mechanical strength and EMI protection and maintain weight and flexibility. A durable FEP jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. E10424 is suitable for airborne 10/100 Base-T CAT5e Local Area Network applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.
Features
- Skydrol resistant
- RoHS compliant
- Passes FAA flammability requirements of FAR part 25, Appendix F
Specifications
Weight:
3.3 lb/100 ft (4.9 kg/100 m)
Outer Diameter:
0.21 in (5.28 mm)
Minimum Bend Radius:
1.1 in (27.94 mm)
Conductor:
24 AWG Stranded Silver-Plated Copper
Shield Coverage:
100% (Foil), 90% (Braid)
Temperature Range:
-55ºC to 200ºC
Impedance:
100 Ω
Capacitance:
13 pF/ft (42.7 pF/m)
Velocity of Propagation:
80%
Dielectric Voltage Rating:
0.9 (kV, RMS)
DC Resistance:
28.5 Ω/1000 ft (93.5 Ω/1000 m)
Max Distance:
268 ft (82 m)
Attenuation Data:
Frequency @ 10 MHz: 2.2 dB/100 ft (7.2 dB/100 m) Nominal, 2.6 dB/100 ft (8.5 dB/100 m) Max
Frequency @ 100 MHz: 6.0 dB/100 ft (19.7 dB/100 m) Nominal, 7.2 dB/100 ft (23.6 dB/100 m) Max
Cable Construction:
Conductors: Silver-Plated Copper
Dielectric: FEP
Shield #1: Aluminum/Polyester Foil
Shield #2: Silver-Plated Copper Braid
Jacket: FEP, Translucent Blue
Color Codes:
Pair #1: White/Blue
Pair #2: Orange/Green
Skydrol Resistant:
SAE AS4373E, Method 601
RoHS Compliant:
RoHS Directive 2002/95/EC
Flame/Smoke Requirements:
FAR Part 25.869 (a) App. F, Part 1, (a)(3)
Berry Specialty Metals Compliance:
Complies with DFARS 252.225-7014, Alt 1
