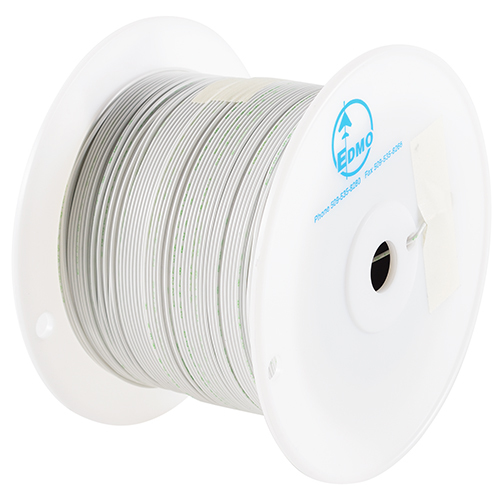

M22759/34 Cross-linked Extruded Modified ETFE Wire | 22 AWG, White

Product Description

SAE AS22759 wire is a fluoropolymer insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

SAE AS22759/34 wire is designed for aerospace and commercial purposes. This wire features a tin-plated copper conductor with cross-linked modified ETFE dual insulation that surrounds an aromatic polyamide braid to prevent fraying.

Specifications

• Gauge:
  22 AWG
• Conductor Material:
  tin-plated copper
• Insulation material:
  cross-linked, extruded, modified ETFE and polyamide braid
• Stranding:
  19/34
• Conductor Size:
  0.029 mm
• Diameter:
  0.039 mm, nominal
• Weight:
  3.2 lb/1000 ft
• Resistance (@ 20°C):
  16.2 Ω/1000 ft

Product Codes

• Mfr Part No
  M22759/34-22-9
• MIL SPEC
  M22759/34-22-9
• ECCN
  EAR99
• MIL SPEC
  M22759/34-22-9
• SCHEDULE B CODE
  8544.49.3080
