iLevil 3 AW | WIAM Wireless Integrated Avionics Module

LEVIL

Call For Pricing

In stock

EDMO # 100030201

MFR Part # 100-03-02-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

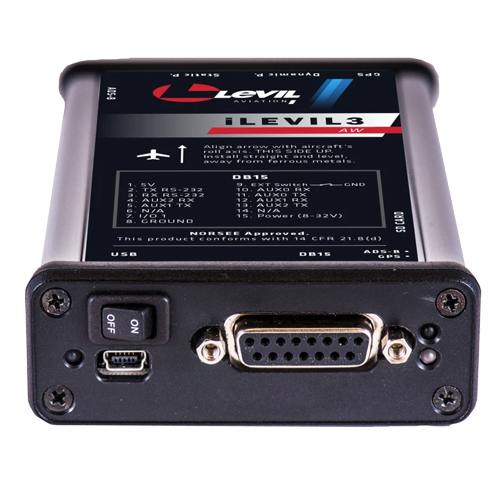

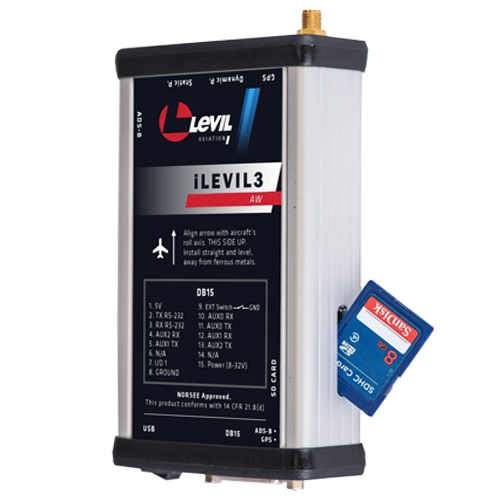

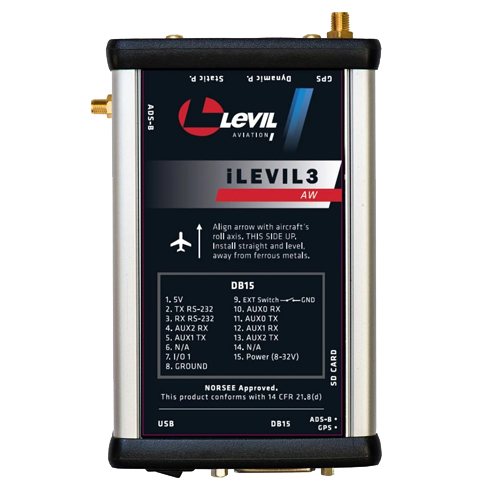

The iLevil 3 AW is a fully independent, all in one avionics device. Capabilities include WAAS GPS, ADSB-in, Air Data (Altitude, Airspeed), AHRS (Attitude, Directional Gyro, Turn Coordination, rate of turn, VSI) and the ability to connect to other external hardware such as EIS systems. Once installed, the ILEVIL 3 AW connects via Wi-Fi to a tablet inside the cockpit and data can be displayed on multiple Apps thanks to its open protocol.

Features

Includes:
Wireless iLevil 3 AW device
USB to Mini USB cable
GPS Antenna
ADS-B antenna
DB15 male connector
User Manual
SD card
Features:

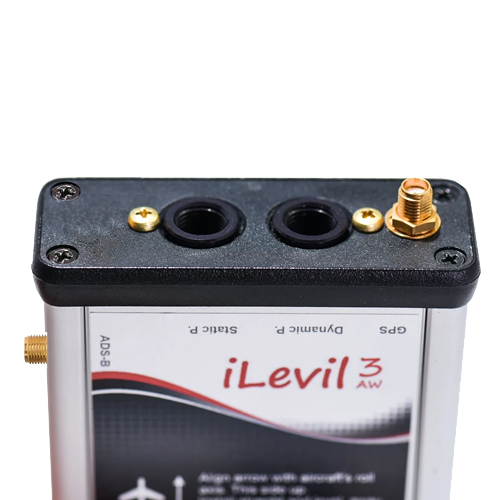

Dynamic and Static Port for indicated airspeed and altitude
WAAS GPS
High-performance AHRS and solid-state technology (Capable of driving synthetic vision displays)
ADS-B Receiver for weather and traffic
Small and lightweight
Records flight data with SD card
Portable or permanently mounted instrument

Also Purchased

Specifications

Weight:

11 oz
Dimensions:

3.2 x 5 x 1.1 in.
Power input:

12 to 28 VDC
Backup battery:

Lasts 5.5 hours

Product Codes

Mfr Part No

100-03-02-01
ECCN

EAR99
SCHEDULE B CODE

9014.20.8040

Documentation
