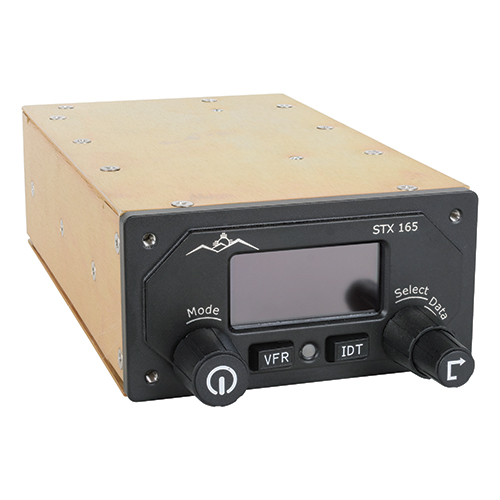

STX 165 | Panel Mount Mode C Transponder

STX 165 | Panel Mount Mode C Transponder

SANDIA AEROSPACE

Call For Pricing

In stock

EDMO # 705832-00

MFR Part # 705832-00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The STX 165 panel mount Mode C transponder effortlessly compliments an aircrafts ADS-B UAT installation. It integrates with the most popular UAT systems and sends the transponders squawk code directly from the STX-165 to the UAT transceiver eliminating the need to enter the squawk code twice and reducing code setting errors. This panel mount transponder uses a 1/2 3ATI panel cutout. It boasts a bright OLED display that is readable in any lighting conditions and automatically dims for nighttime operations. The solid state design provides 200 watts nominal output with no warm-up time, while power requirements remain minimal.

Features

Simplified installation with a built-in encoder
ADS-B Compatible with UAT 978 systems
Three function timer includes elapsed time, up timer, and down timer
Compatible with STP 78 OAT probe (sold separately)
Compact and lightweight, weighs only 1.3 lb
Ideal for LSA, glider, and UAV operations with a low current requirement
DO160F, DO 178B level C, TSO C74d, TSO D88b (encoder) certified

Also Purchased

Specifications

Weight:

1.3 lb
Dimensions:

7.34 x 3.5 x 1.78 in
Input Voltage

: 11–33 VDC
Current requirements:

430 mA @ 14 VDC 210 mA @ 28 VDC
Power Output

: 200 watts, nominal
Transmitter Frequency:

1,090 KHz
Receiver Frequency:

1,030 MHz
Inputs:

Built-in 35k altitude encoder Sandia SPT78 (optional) OAT probe
Temperature:

-20°C to 55°C
Altitude:

-1,000 to 35,000 ft
Certification:

DO160F, DO 178B level C, TSO C74d, TSO D88b (encoder)

Product Codes

Mfr Part No

705832-00
ECCN

7A994
SCHEDULE B CODE

9014.20.8040
TSO

C74d, C88b

Documentation

STX 165 User Guide
