iLevil 3 AW | Approved GPS, WIAM Wireless Integrated Avionics Module


LEVIL

Call For Pricing
Available to order
EDMO # 100030202
MFR Part # 100-03-02-02
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

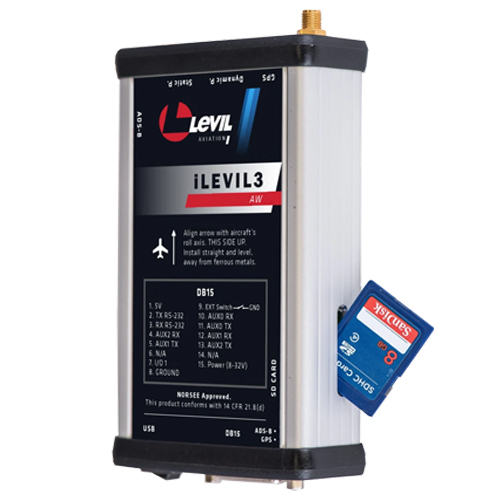

The iLevil 3 AW is a fully independent, all in one avionics device. Capabilities include WAAS GPS, ADSB-in, Air Data (Altitude, Airspeed), AHRS (Attitude, Directional Gyro, Turn Coordination, rate of turn, VSI) and the ability to connect to other external hardware such as EIS systems. Once installed, the ILEVIL 3 AW connects via Wi-Fi to a tablet inside the cockpit and data can be displayed on multiple Apps thanks to its open protocol.

Version (EDMO# 100030202) has approved GPS.

Features

  • Includes:
  • Wireless iLevil 3 AW device
  • USB to Mini USB cable
  • GPS Antenna
  • ADS-B antenna

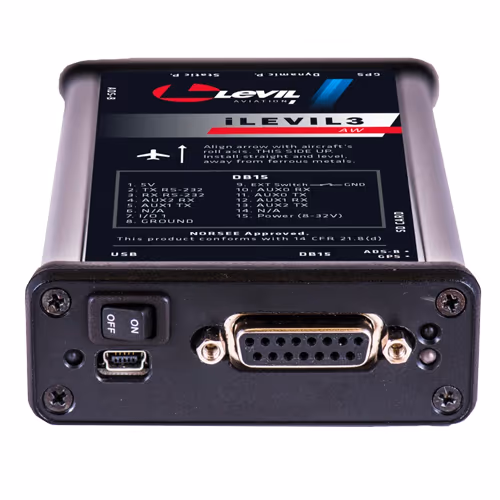

  • DB15 male connector
  • User Manual
  • SD card
  • Features:

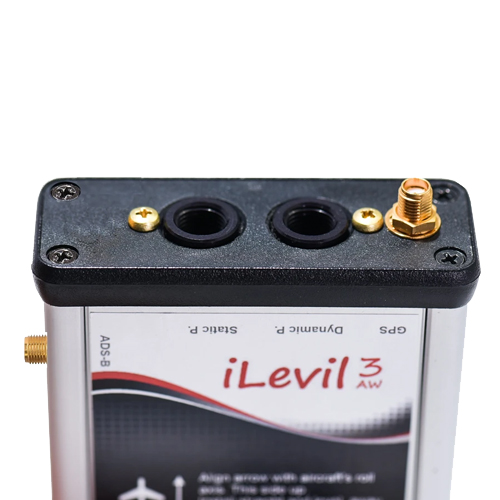

  • Dynamic and Static Port for indicated airspeed and altitude
  • WAAS GPS
  • High-performance AHRS and solid-state technology (Capable of driving synthetic vision displays)
  • ADS-B Receiver for weather and traffic
  • Small and lightweight
  • Records flight data with SD card
  • Portable or permanently mounted instrument

Specifications

  • Weight:
    11 oz
  • Dimensions:
    3.2 x 5 x 1.1 in.
  • Power input:
    12 to 28 VDC
  • Backup battery:
    Lasts 5.5 hours

Related Products

Product Codes

  • Mfr Part No
    100-03-02-02

Documentation
