TJT-120 Threaded 4-Conductor Front-Mounted Telephone Jack

Product Description

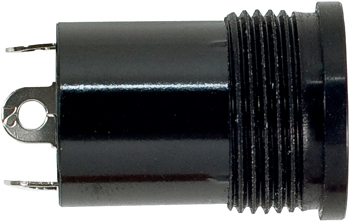

The TJT-120 threaded front-mounted telephone jack securely mounts to aircraft panels by screwing into   a threaded mounting hole and securing with a nut and lock washer from behind. Mates with Nexus series TP-120, TP-101, and TP-102 plugs.

Specifications

• Dimensions:
  0.719 x 0.719 x 1.125 in
• Number of Conductors:
  4
• Contact Diameter:
  0.285 in
• Contact Length:
  0.188 in
• Shell Material:
  plastic
• Contact Material:
  nickel-plated, beryllium copper
• Thread:
  11/16-24 UNEF-2A
• Solder Contact Terminals:
  pre-tinned over nickel plating
• Contact Resistance:
  ≤0.02 Ω
• Insulation Resistance:
  ≥1,000 mΩ
• Dielectric Withstanding Voltage:
  >500 V RMS
• Insertion Force:
  13 lb, maximum
• Withdrawal Force:
  6 to 10 lb

Product Codes

• Mfr Part No
  TJT-120
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4020
