TJS-102 4-Conductor Telephone Jack Switch | Momentary Push Button, Clothing Clip

Product Description

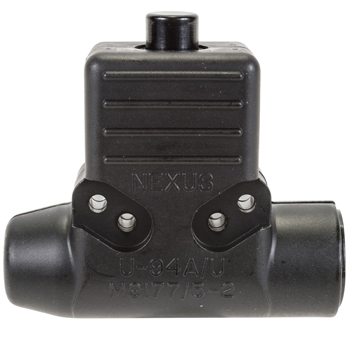

The TJS-102 telephone jack switch features a momentary push button switch with included clothing clip. The four-conductor jack mates with the Nexus series TP-120, TP-101, and TP-102 plugs.

Specifications

• Dimensions:
  1.625 x 2.156 x 2.359 in
• Number of Conductors:
  4
• Contact Diameter:
  0.285 in
• Shell Material:
  plastic
• Contact Material:
  nickel-plated, beryllium copper
• Standard:
  MIL-C-9177
• Solder Contact Terminals:
  Pre-tinned over nickel plating
• Contact Resistance:
  ≤ 0.02 Ω
• Insulation Resistance:
  ≥ 1,000 mΩ
• Dielectric  Withstanding Voltage:
  ≥ 500 V RMS
• Insertion Force:
  13 lb, maximum
• Withdrawal Force:
  6 to 10 lb

Product Codes

• Mfr Part No
  TJS-102
• MIL SPEC
  M9177/5-2
• ECCN
  EAR99
• MIL SPEC
  M9177/5-2
• SCHEDULE B CODE
  8536.69.4020

Documentation

• TJS-102 Drawing
