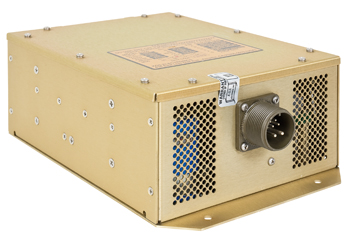

SS50 Static Inverter | 115V, 60Hz, 500VA, Sine Wave, Lightweight

K G S ELECTRONICS

Call For Pricing

In stock

EDMO # SS50

MFR Part # SS50

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SS50 static inverter uses solid state circuitry to invert a 500VA 28 VDC input to 115 VAC, 60 Hz sine wave output. Designed with a crystal-controlled oscillator for output frequency stability and a pulse width modulated square to sine wave power conversion scheme for efficient and reliable operation. The SS50 inverter provides power for laptop computers, audio/video entertainment systems, portable electronics (stereo, MP3, CD, DVD, video games, etc.), microwave ovens, coffee makers, and medical equipment in airborne, marine, and ground mobile applications.

Features

Crystal-controlled oscillator
Pulse-width-modulated
Square to sin wave power conversion scheme
Efficient and reliable operation
Output frequency stability
Remote On/Off

Specifications

Weight:

4.3 lb
Dimensions:

6.43 x 9.5 x 3.5 in
Input voltage:

28 Vdc (nominal), 20 Vdc to 36.5 Vdc Range
Input current:

20.7 ADC (nominal) at FL (500VA & 28 Vdc Input) .5 ADC (nominal) at No Load
Output voltage:

115 VAC (108 TO 120 VAC)
Output frequency:

60 Hz
Output current:

4.34 AAC (rms) at Full Load
Output power:

500 VA
Output wave form:

Sine
Harmonic distortion:

0.5 % (nominal)
Power factor:

+0.8 TO -0.8
Output phase:

Single
Efficiency:

85% (nominal)
Response time:

300 uSec (No Load to Full Load)
Regulation:

1 % Line, 1 % Load, 2.5 % Temperature
Operating temperature:

-55 ° C to +71 ° C (-65 ° F to +160 ° F)
Altitude:

55,000 ft
Cooling:

Thermostatically controlled brushless fan (on above 50 ° C)
